General Type Expanded Metal Machine
JUNEN’s expanded metal machine is the proud result of the company’s ambitious endeavor to gain a competitive advantage worldwide. Since JUNEN is both a machine supplier and an expanded metal product manufacturer, we are happy to share our experience and provide technical consultation regarding new construction and expansion of expanded metal production.
JUNEN’s Expanded Metal Machine satisfies different production requirements by supplying high-quality customized machines according to your needs. It can be categorized by working width as the 35, 61, 75, 125, 160, 260, and 310 series. The General Type includes the 61, 75, 125, 160, and 260 series. According to material thickness requirements, there are L, H, HB, and HH types for your choice. Please contact us for more details and advice.
JUNEN’s machines are equipped with servo drives, PLC, and HMI control to assure the capability of producing a wide range of expanded metal products at high speed, while delivering high-quality output. You can produce with either coil or a single sheet of steel on the same machine.
| Series | Spec | Model | ||||
| L | H | HB | HH | |||
| 35 | SWD (mm) | 0.5 – 2 | - | - | - | |
| LWD (mm) | 1 – 4 | - | - | - | ||
| Thickness(mm) | MILD STEEL | 0.1 – 0.8 | - | - | - | |
| STAINLESS STEEL | 0.1 – 0.5 | - | - | - | ||
| Speed | 1500 | - | - | |||

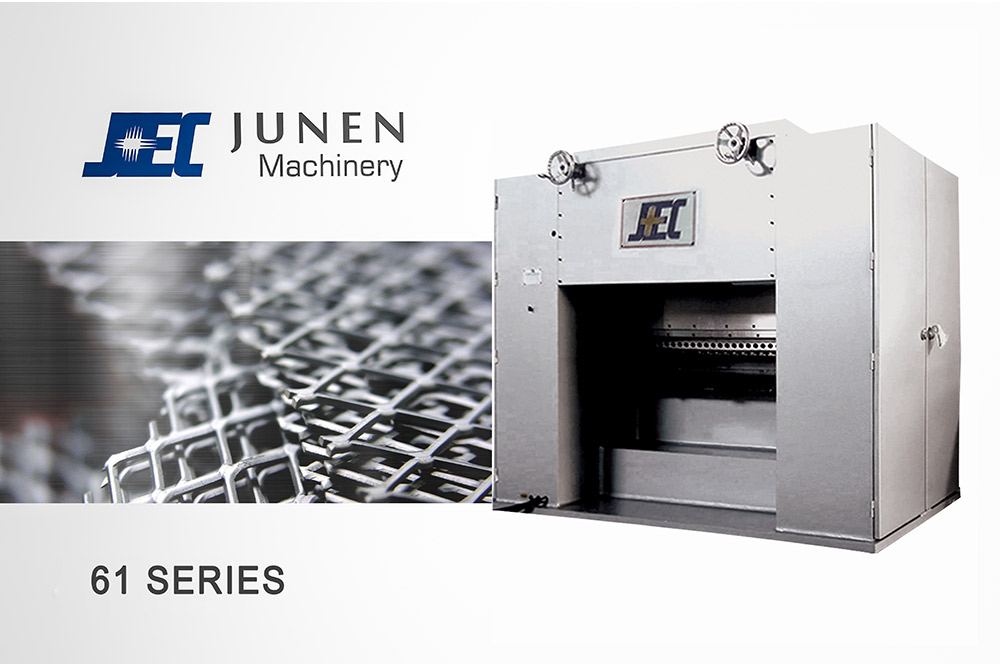

| 61 | SWD (mm) | 1 – 6 | 2 – 15 | - | - | |
| LWD (mm) | 2 – 12 | 4 – 30 | - | - | ||
| Thickness(mm) | MILD STEEL | 0.3 – 0.8 | 0.3 – 1.0 | - | - | |
| STAINLESS STEEL | 0.3 – 0.6 | 0.3 – 0.8 | - | - | ||
| Speed | 1200 | 1000 | - | - | ||

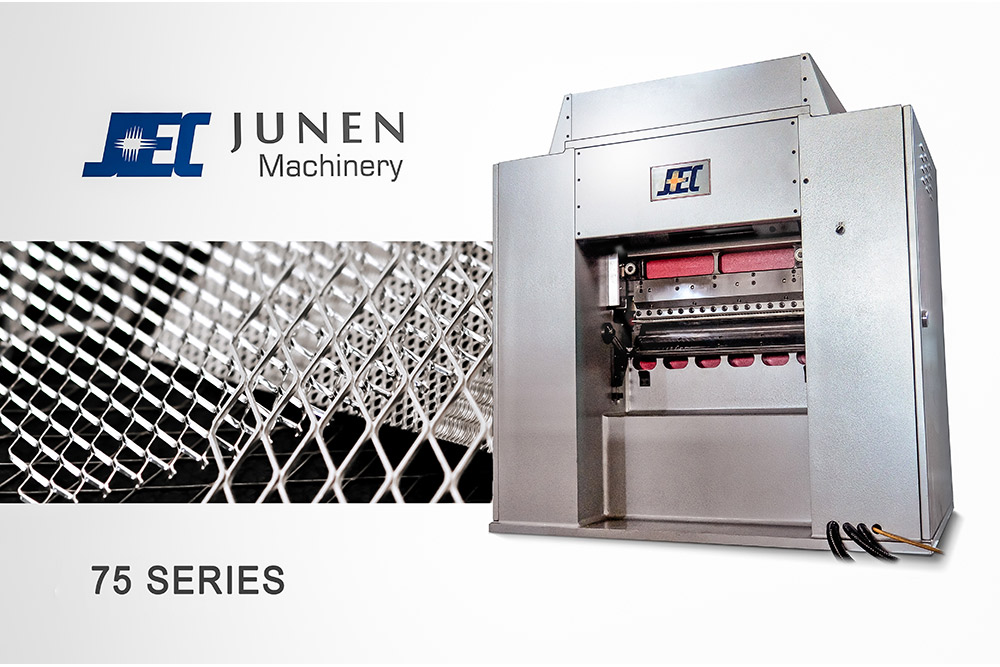

| 75 | SWD (mm) | 1 – 12 | 4 – 34 | - | - | |
| LWD (mm) | 2 – 24 | 8 – 80 | - | - | ||
| Thickness (mm) | MILD STEEL | 0.3 – 1.2 | 1.4 – 2.6 | - | - | |
| STAINLESS STEEL | 0.1 – 0.8 | - | - | |||
| Strand (mm) | 0.3 – 3.0 | 1.4 – 5.0 | - | - | ||
| Speed | 1200 | 600 | - | - | ||

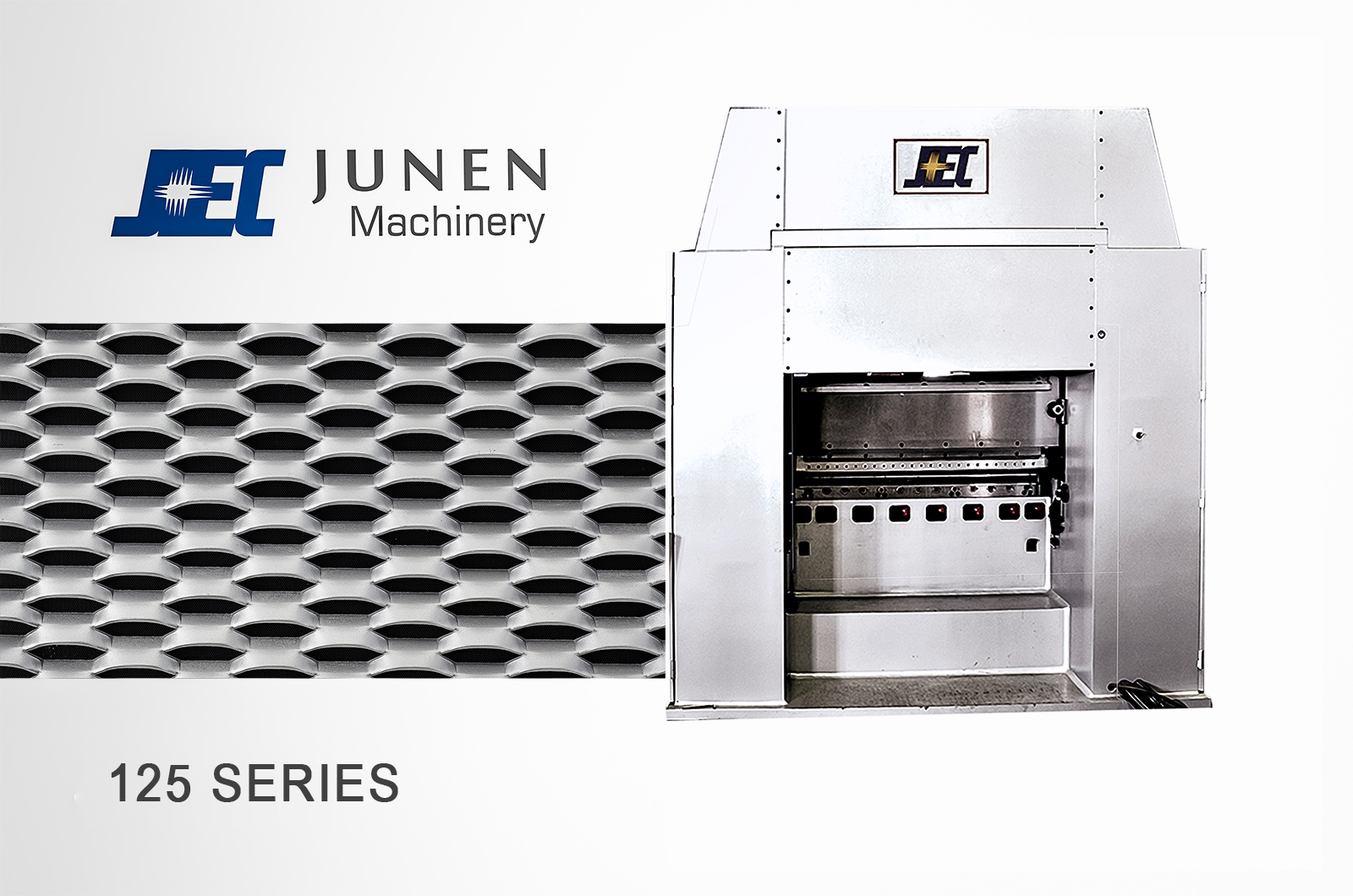

| 125 | SWD (mm) | 1 – 12 | 2 – 38 | 12 - 40 | - | |
| LWD (mm) | 2 – 24 | 4 – 76 | 30 - 140 | - | ||
| T Thickness (mm) | MILD STEEL | 0.3 – 1.2 | 0.5 – 3.0 | 0.5 – 3.5 | ||
| STAINLESS STEEL | 0.3 – 1.0 | 0.5 – 2.0 | 0.5 – 2.0 | |||
| Speed | 900 | 450 | 350 | - | ||

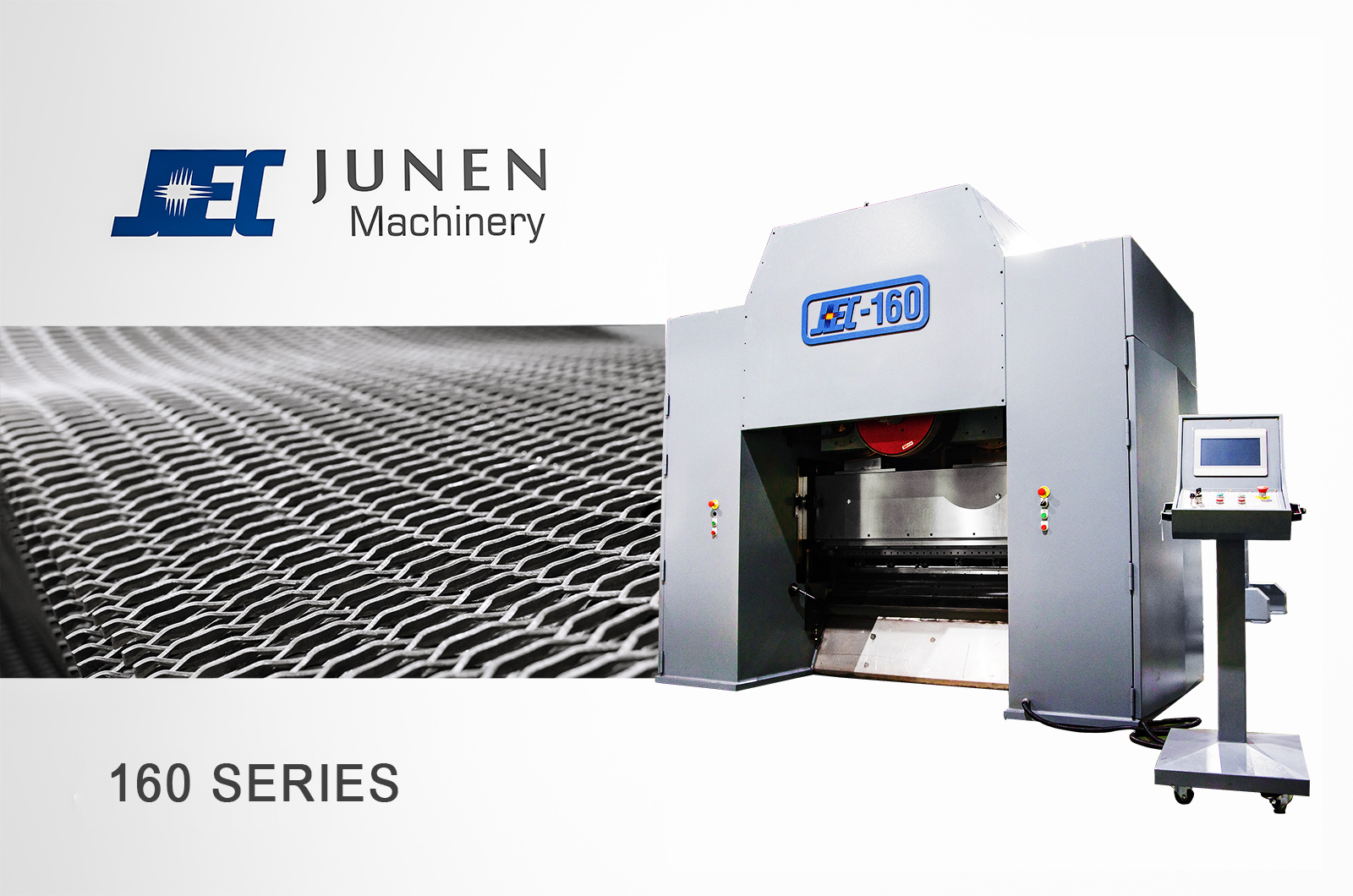

| 160 | SWD (mm) | 6 – 15 | 12 – 40 | 12 – 50 | 12 – 70 | |
| LWD (mm) | 10 – 32 | 30 – 140 | 30 – 140 | 30 – 160 | ||
| Thickness (mm) | MILD STEEL | 0.5 – 2.0 | 0.5 – 3.2 | 1.5 – 6.0 | 1.6 – 9.5 | |
| STAINLESS STEEL | 0.5 – 1.5 | 0.5 – 2.0 | 1.5 – 4.5 | 1.6 – 7.5 | ||
| Speed | 450 | 260 | 250 | 230 | ||

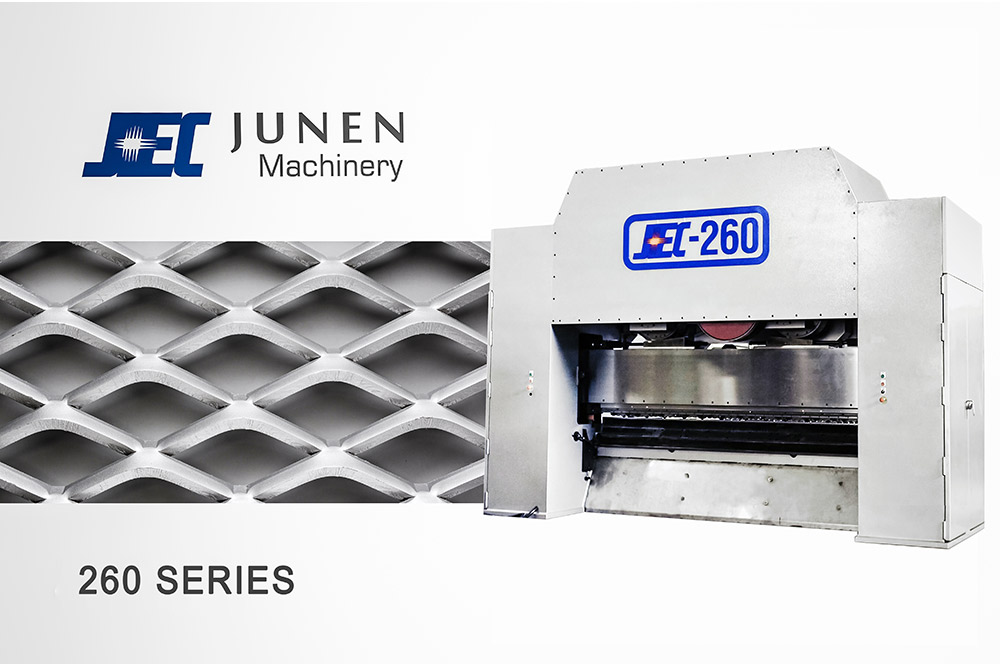

| 260 | SWD (mm) | 10 – 35 | 12 – 50 | 12 – 70 | 12 – 101 | |
| LWD (mm) | 25 – 76 | 25 – 140 | 30 – 200 | 30 – 203 | ||
| Thickness (mm) | MILD STEEL | 0.5 – 3.0 | 1.0 – 5.0 | 1.0 – 6.0 | 1.0 – 8.0 | |
| STAINLESS STEEL | 0.5 – 2.0 | 1.0 – 4.0 | 1.0 – 5.0 | 1.0 – 5.0 | ||
| Speed | 250 | 230 | 200 | |||
| 310 | SWD (mm) | - | - | 10 – 70 | 12 – 101 | |
| LWD (mm) | - | - | 20 – 160 | 30 – 203 | ||
| Thickness (mm) | MILD STEEL | - | - | 1.5 – 6.0 | 3.0 – 8.0 | |
| STAINLESS STEEL | - | - | 1.5 – 4.0 | 3.0 – 6.0 | ||
| Speed | - | 230 | 200 | |||
- Decoiler
- Flattener
- Multi-roller leveler
- Recoiler
- SWD servo motor auto adjustment

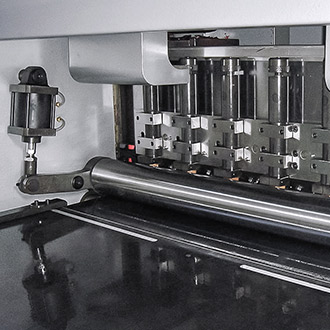

- Servo-motor roller feeding system

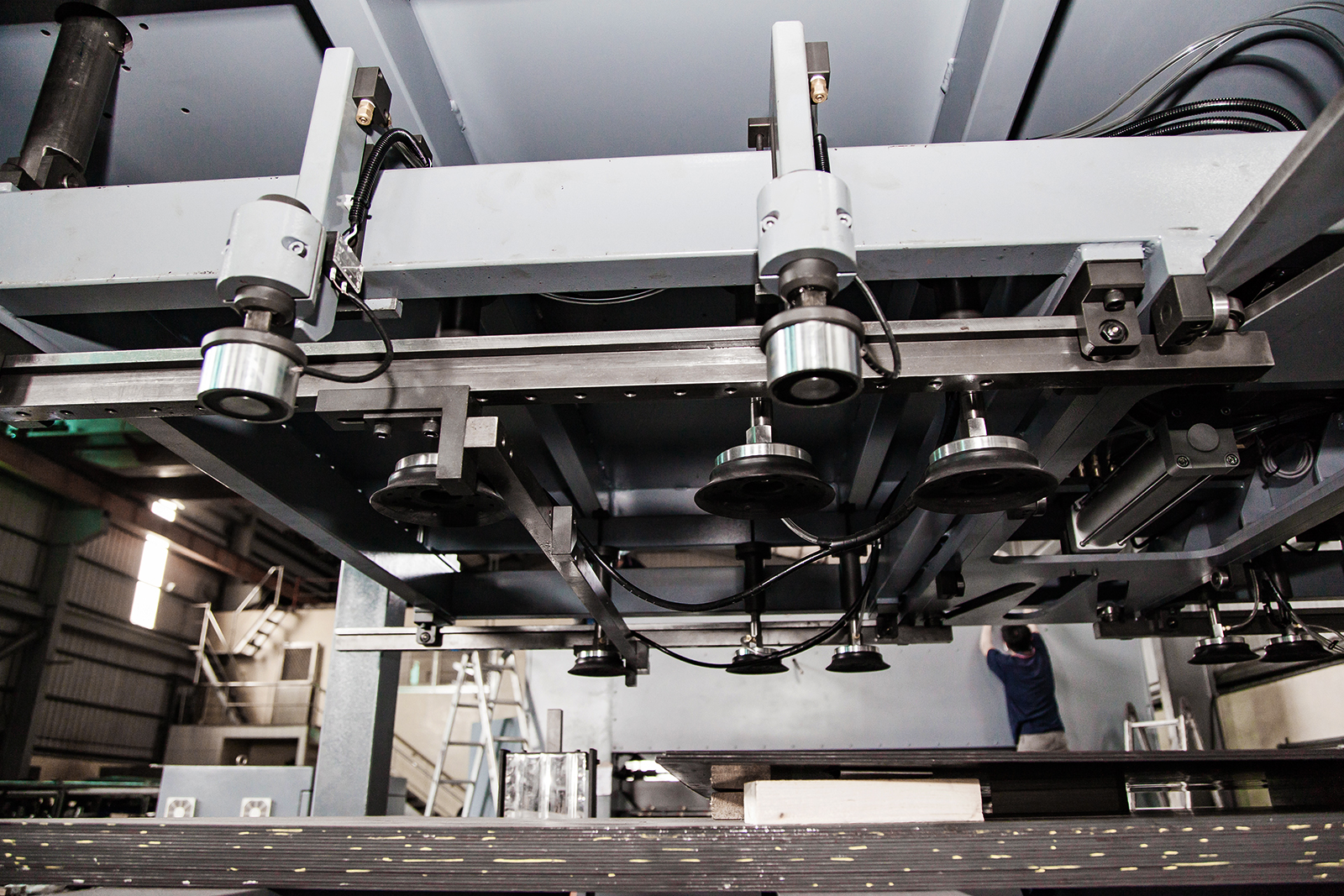

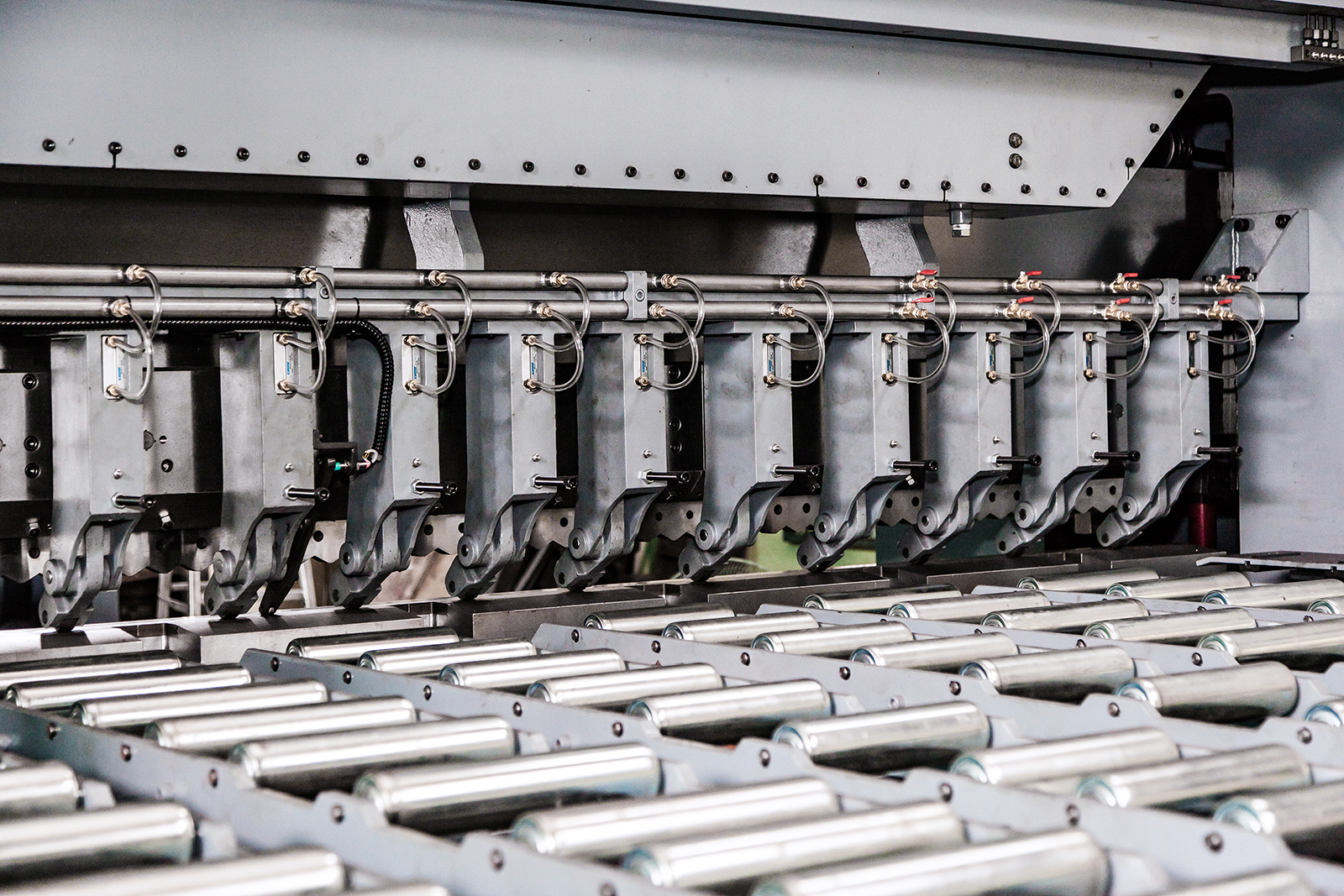

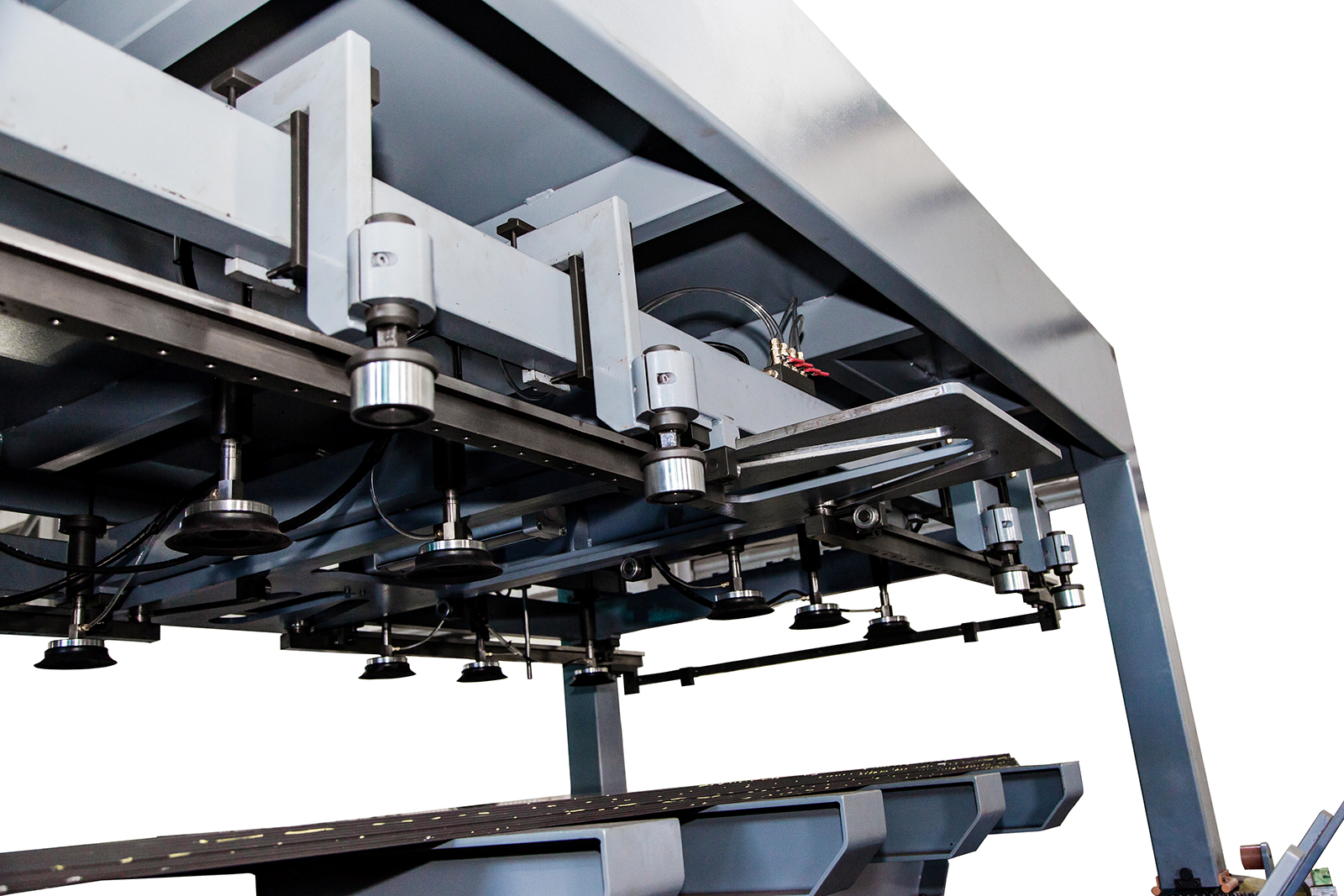

- Clamping feeder & sheet loader (for 250, 310 series only)

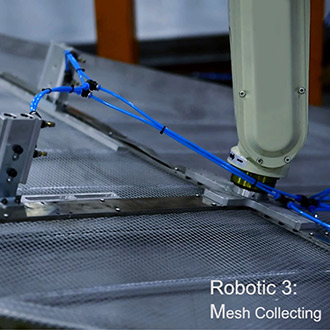

- Robotic of Production line.
- Accurate, no-waste and high speed production.

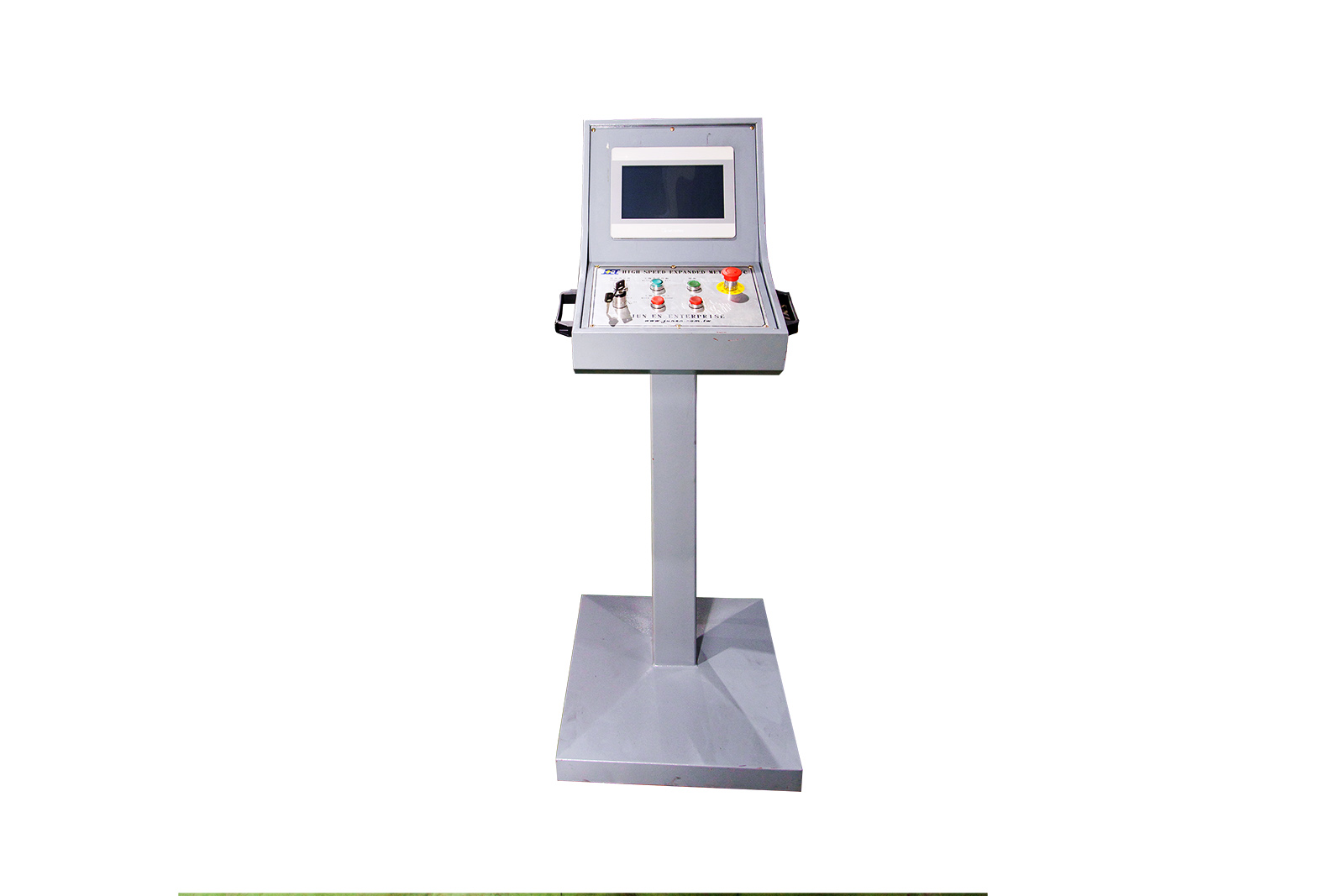

- Easy maintenance and user-friendly control panel.
- Suitable for both single metal sheet and coil production.
