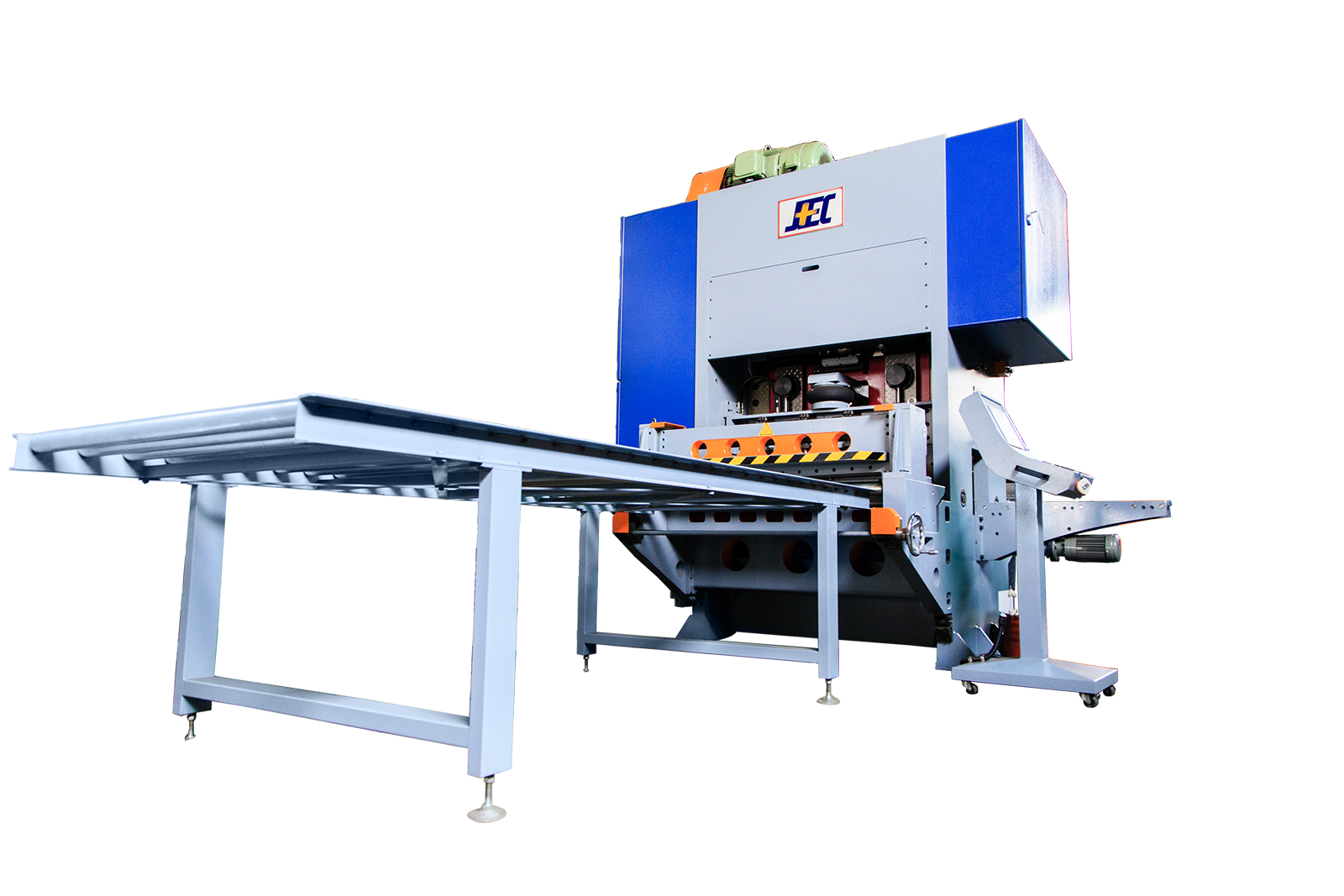

High Speed Plano-Type Perforated Metal Machine

JUNEN manufactures different types of perforated metal machines. Through continuous improvements to the feeding mechanism and punching moulds, will our machines be able to meet your needs for different perforation patterns and perforated metal applications. We are always happy to provide technical advices to you.

JUNEN perforated metal machine has two choices for you: Plano type and C type. Plano type perforated metal machine is best for mass production focusing on high speed, larger capacity with similar mesh pattern requirements. The optional Quick-Die-Change-System enables better performance with lower production costs. C type perforated metal machine is best for various mesh pattern and wild range of thickness requirements. The machine is also equipped with easy-changing punch dies which saves a lot of time on changing the moulds and lots of costs on the moulds.

Perforated metal is a metal sheet or coil punched with holes. We produce our perforated metal using our JUNEN perforated metal machines. With years of experience, we are able to satisfy our customers by providing perforated metal with holes in round, square, slotted, or custom shapes on special request. JUNEN’s perforated metal mesh products are widely used in filtration, mechanical protection, noise insulation, and architectural applications.

Specifications
  • Working Width: 610mm ,750mm, 1250mm,1500mm
  • Thickness: Mild Steel 0.5mm - 3.0 mm
                    Stainless Steel 0.5mm - 1.5mm
  • Speed: Max. 400 s.p.m (strokes per minute)
Optional Equipment
  • Auto hydraulic shearing unit
  • Hydraulic decoiler* Recommended
    Hydraulic recoiler
  • Multi-roller leveller
Features

High-speed operation with multi-row punching moulds (up to 8 rows)
Ideal for mass production with similar mesh patterns
QDCS—Quick Die Change System
Available for coil-to-coil, coil-to-sheet, and sheet-to-sheet production

Applications of Perforated Metal
Audio, Architectural Decoration, HVAC, Filtration, Noise Control, Merchandise Displays, Walkway/Grating.

Audio
A perforated metal grille is usually mounted in front of the speaker driver to protect the driver element, speaker internals, and other audio components without affecting sound quality.

Architectural Decoration
Perforated mesh is used in a wide range of architectural applications, including interior decoration, building sunscreens, ceiling panels, and stair treads/risers. Perforated mesh gives modern design more energy and flexibility.

Filtration
Perforated metal can be used in filters to support the filter media. It can be formed into various shapes, such as tubes, cylinders, and sheets.

Noise Control
Perforated mesh is an excellent choice for noise control. It can be located anywhere on walls and ceilings to instantly reduce noise levels and control reverberation, solving the problems that make communication and concentration difficult in many environments.

Machine Video

Plano-Type Perforated Metal Machine (PLP-1250H)

Plano-Type Perforated Metal Machine (PLP-1250H)

Plano-Type Perforated Metal Machine(DPP-1250)

Plano-Type Perforated Metal Machine(DPP-1250 MH)
