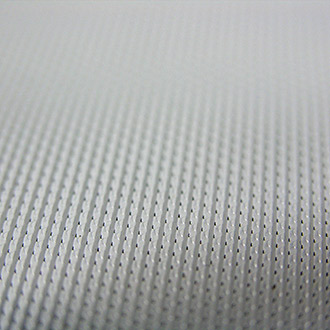

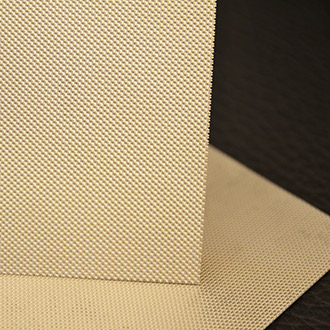

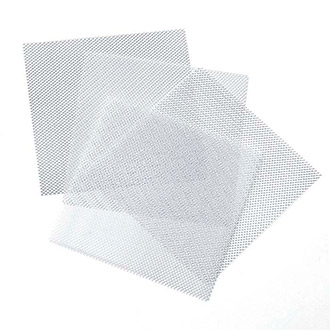

JUNEN manufactures micro expanded metal mesh — openings as fine as 0.5mm — for applications where standard mesh is too coarse.

It's formed from a single sheet, with no welds. That means precise, consistent openings down to sub-millimeter scale across the full sheet.

Micro mesh serves several distinct industries. Find your application below:

EMI/RFI Electronic Shielding
Shields electronic enclosures from electromagnetic and radio-frequency interference — while still allowing airflow for cooling. Solid metal shielding can't do both.

Battery Current-Collecting Grids
Used as the current-collecting grid plate in battery electrodes. High strength-to-weight ratio, with more surface contact area than solid foil.

Acoustic & Speaker Grilles
Fine, low-wind-resistance mesh that protects speaker drivers while staying sound-transparent. Small enough openings to look clean without muffling sound.

Fine Filtration & Strainers
One-piece construction — no joints to trap particles or fail under pressure. Suited to air and fluid filtration, gutter filters, and strainers.

Heat Transfer & Lightning Strike Protection
High conductivity supports heat dissipation and lightning-strike current distribution — common in aerospace and cooling applications.

Available Materials

Steel · Mild steel · Aluminum · Galvanized steel · Copper · Nickel · Chromium · Titanium · Specialty alloys

Material depends on the application:

  • Copper / nickel → conductivity (EMI shielding, battery grids)
  • Titanium → corrosion resistance
  • Steel / aluminum → general filtration and acoustic uses

Why JUNEN

Founded in 1987, JUNEN produces both micro expanded metal mesh and the machinery that forms it.

That precision holds consistent sub-millimeter openings across full production runs — a tolerance off-the-shelf mesh suppliers often can't match at this scale.

Mesh Specifications
Name Strand Size (MM) Mesh Size (MM) Open Area
ID No. T W SW LW %
JM-01-06 1.0 1.0 0.06 2
JM-01-05 0.1 0.1 0.5 1
JM-01-01 0.1 0.1 1 2
JM-03-02 0.3 0.3 2 4
JM-15-16 0.15 1.9 1.6 2.4

Applications:

  • Current-collecting expanded metal grids
  • Heat Transfer/Cooling system: e.g. Heat Sinks
  • Aero Devices: e.g. Lightning Strike Protection
  • Electronic shielding: e.g. EMI/RFI Shielding
  • Sound Insulation: e.g. Acoustic Ceilings

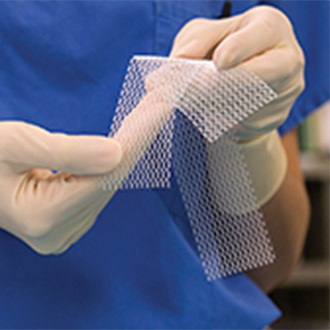

  • Medical, Automotive, Chemical, Mining, Filtration, Segregation and Petroleum industry


Material: steel, mild steel, aluminum, galvanized, copper, nickel, chromium, titanium and other different materials

Glossary of Expanded Metal Terms

T (Thickness): Plate Thickness
W (Width): Strand width
SW: Short way dimension of mesh
LW: Long way dimension of mesh

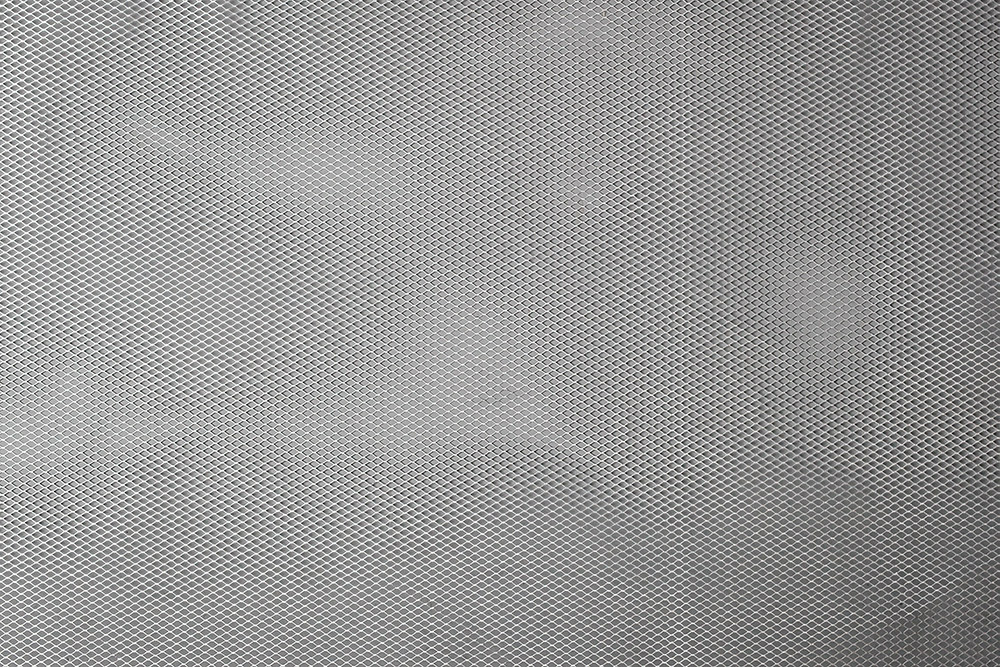

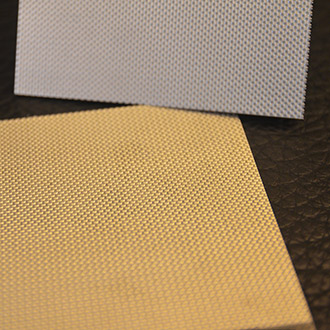

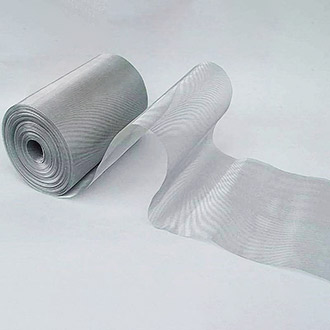

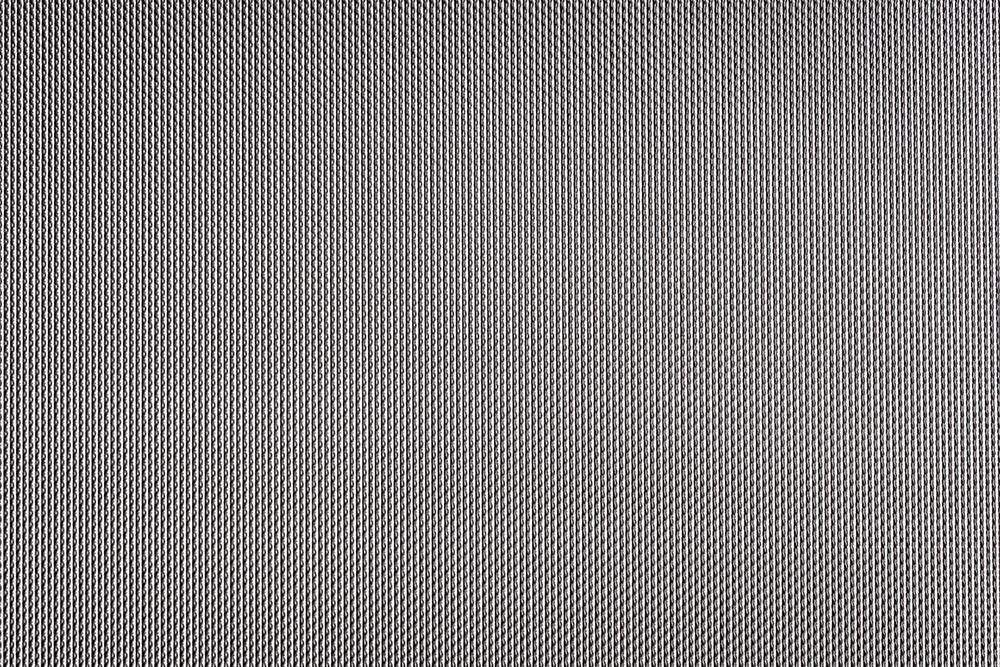

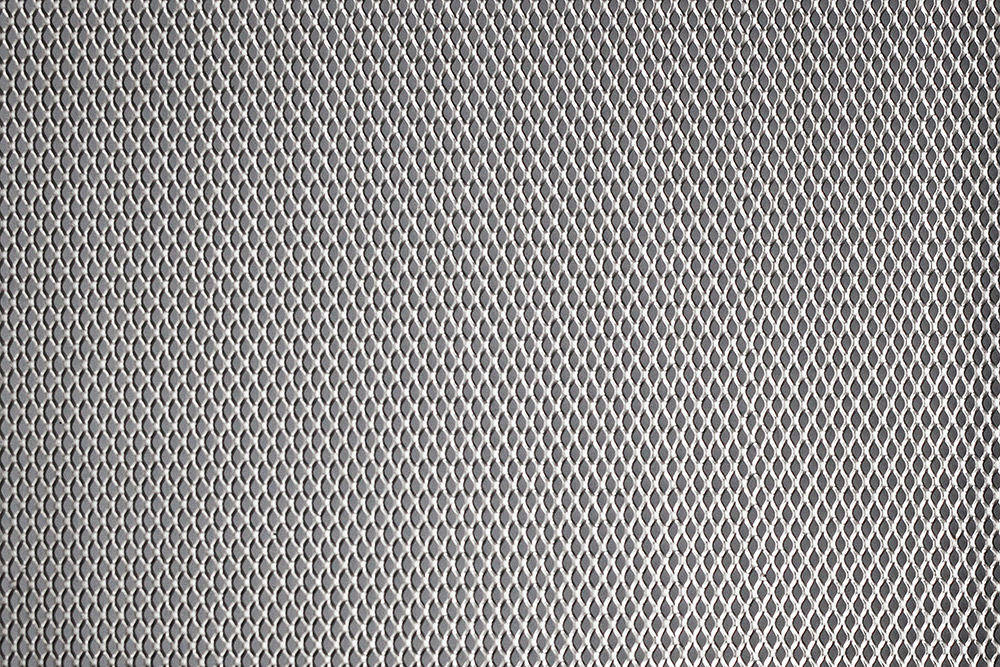

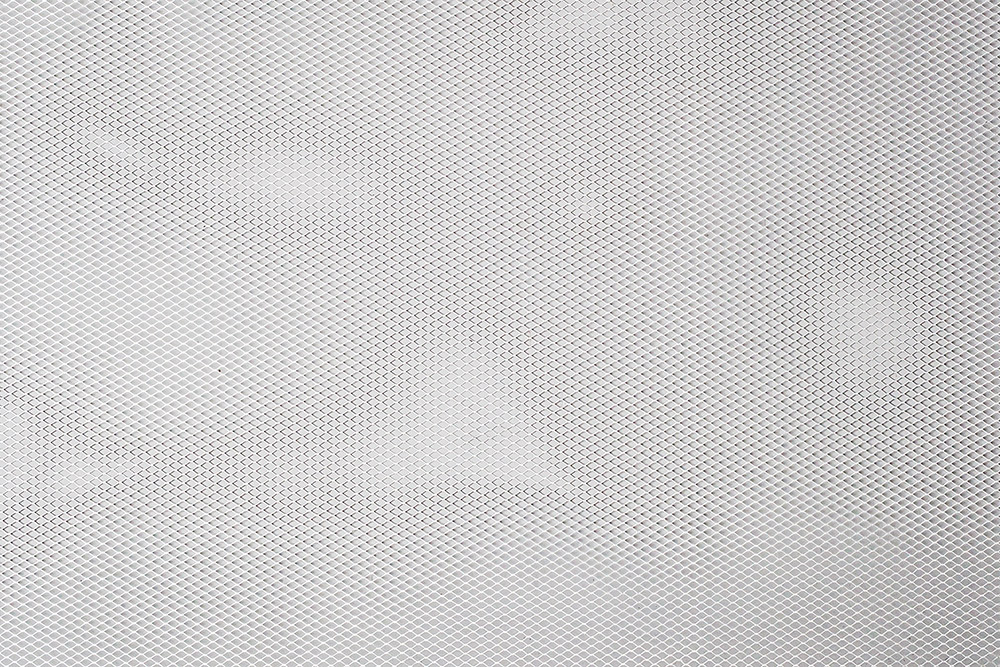

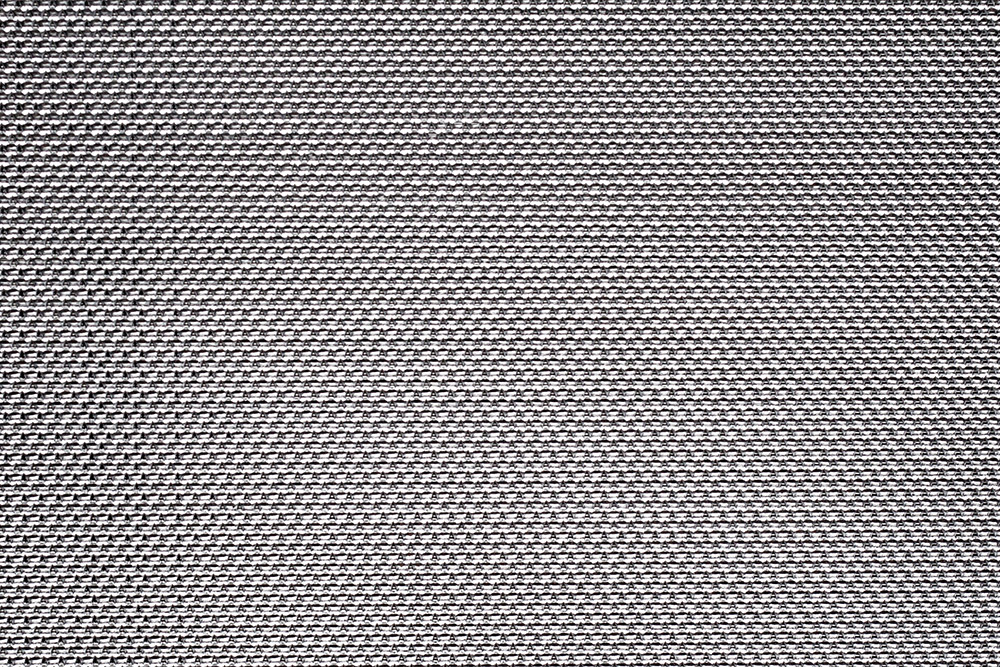

Micro Expanded Metal Mesh
The illustrations show the correct way to designate SW and LW dimensions in relation to the length or width.

【Standard】 【Flatten】

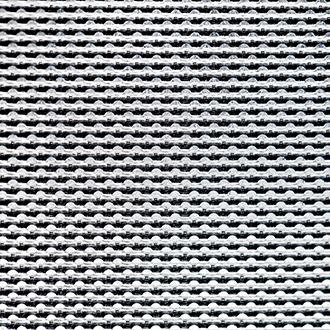

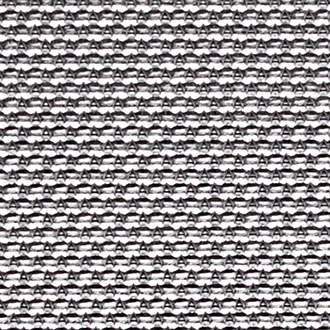

Micro Expanded Metal Mesh (Standard) Micro Expanded Metal Mesh (Flatten)
