Expanded Metal Support Mesh for HEPA & ULPA Filters
Expanded Metal Support Mesh for HEPA & ULPA Filters
JUNEN manufactures expanded metal support mesh engineered specifically for HEPA, ULPA, and FFU filtration systems. As a Taiwan manufacturer that produces both metal mesh and the machinery that makes it, we control every stage of production — from precise opening-ratio control to consistent flatness — so our support mesh performs reliably under continuous filter loads.
What Is HEPA Filter Support Mesh?

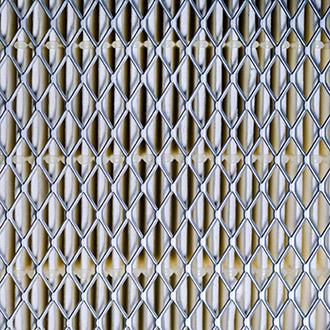

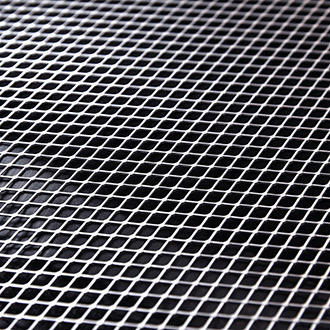

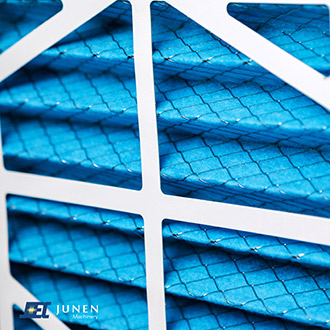

HEPA filter support mesh is a rigid, open-structure metal mesh layer placed behind or around a HEPA or ULPA filter media pack. It provides the structural backbone that keeps the filter media flat and properly supported under airflow pressure, while allowing air to pass through with minimal resistance.

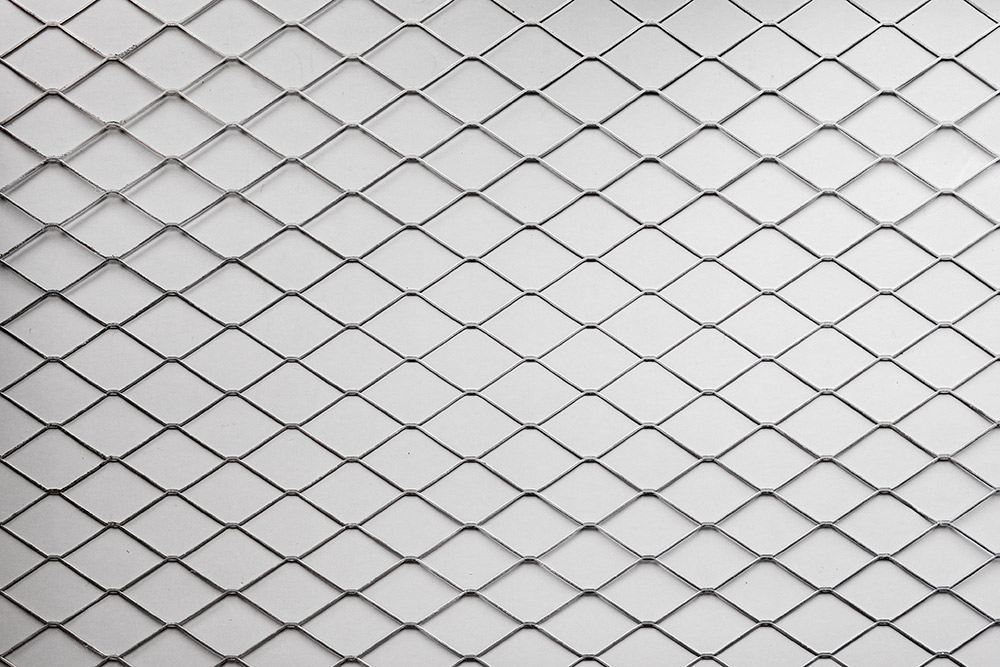

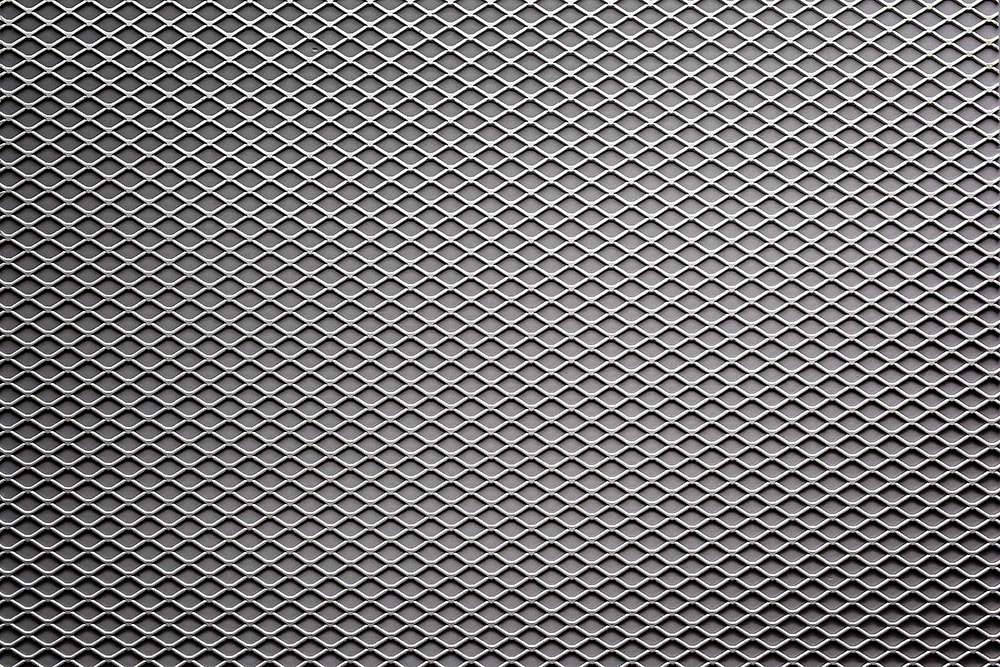

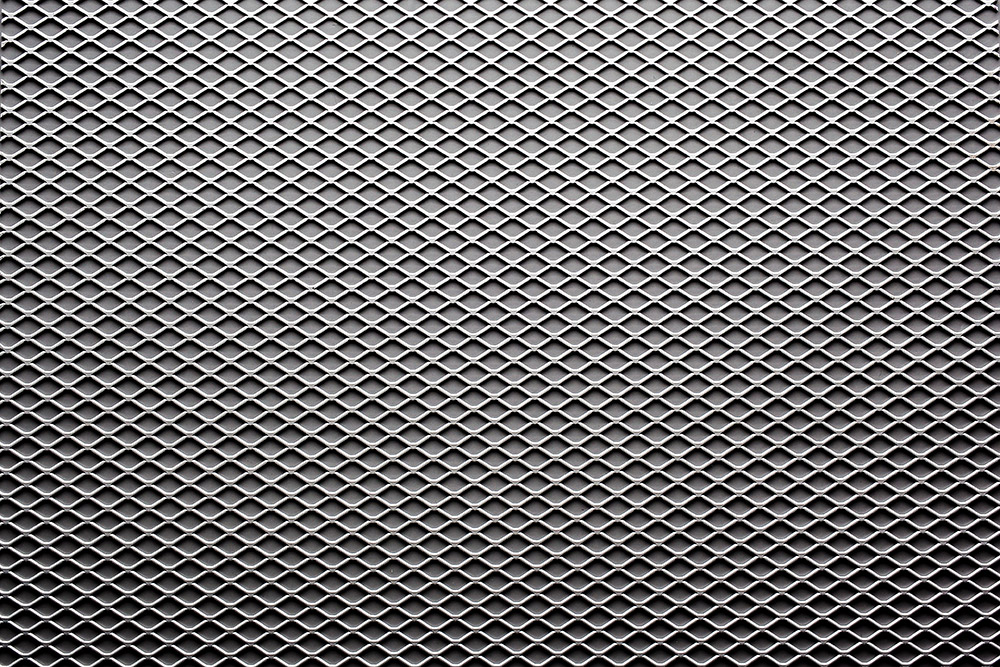

Why Expanded Metal Is Used in HEPA & ULPA Filters

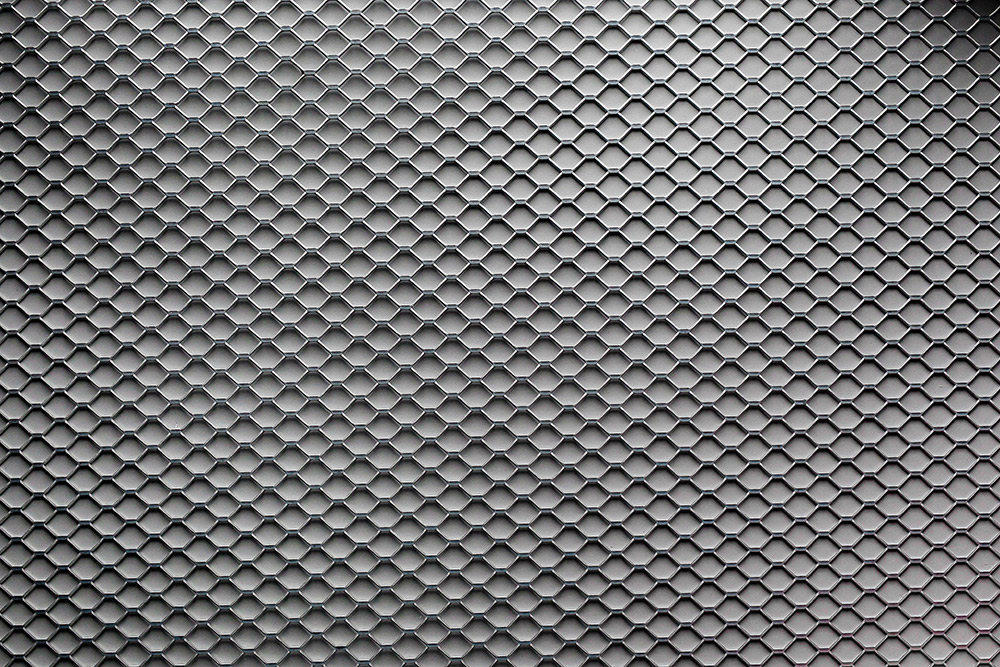

Expanded metal is formed by slitting and stretching a solid sheet — not welding or perforating — which means there are no loose joints or drilled-out material to shed. This gives HEPA and ULPA support mesh three advantages over other mesh types:
- Consistent, uniform open area across the full sheet, for even airflow
- High structural rigidity with minimal material weight
- No welds or seams that can loosen or corrode over the filter's service life

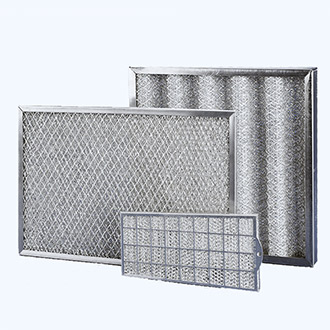

Applications

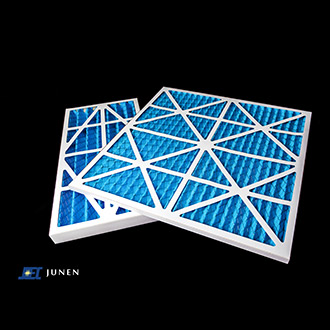

- FFU (Fan Filter Unit) support layers

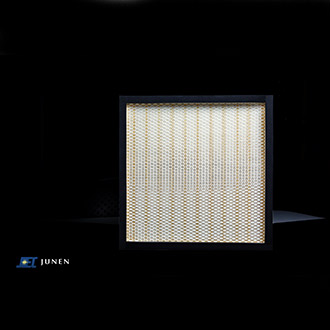

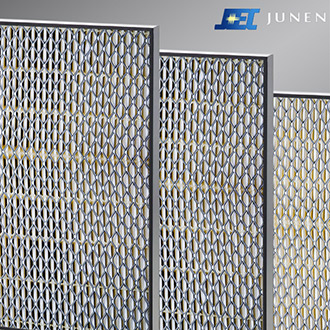

- HEPA filter support mesh
- ULPA filter support mesh
- AMC (Airborne Molecular Contamination) / chemical filter support
- Pre-filter support mesh

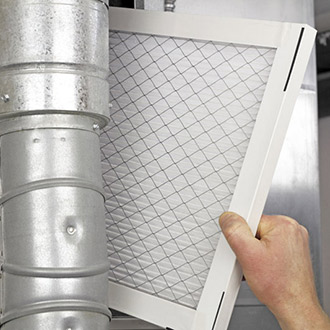

- Cleanroom HVAC systems
Available Materials
- Aluminum — lightweight, standard cleanroom applications
- Galvanized steel — general-purpose, cost-efficient support layers
- Stainless steel — corrosion resistance for demanding environments
- Copper, titanium, and nickel — for cleanroom and chemical-treatment applications requiring specific functional or anti-microbial properties
Why JUNEN
Founded in 1987, JUNEN is one of Taiwan's leading manufacturers of both metal mesh and the machinery that produces it. Our HEPA and ULPA support mesh has been supplied to cleanroom and semiconductor supply chains for over 30 years, with production backed by ISO 9001:2015 certification and exports to more than 80 countries.
Request a Sample or a Quote
Tell us your filter type, material, and dimensions, and our engineering team will confirm the right specification for your application.
| Name | Strand Size (MM) | Mesh Size (MM) | Open Area | ||
|---|---|---|---|---|---|
| ID No. | T | W | SW | LW | % |
| JF-08-04 | 0.8 | 0.8 | 4(5) | 8(10) | 60 |
| JF-08-06 | 0.8 | 0.8 | 6 | 12 | 73.3 |
| JF-01-06 | 1.0 | 1.0 | 6 | 12 | 67 |
| JF-08-07 | 0.8 | 0.8 | 7 | 14 | 77.1 |
| JF-01-07 | 1.0 | 1.0 | 7(8) | 14(13) | 86 |
| JF-03-18 | 0.3(0.4) | NA | 18 | 31.75 | NA |
| JF-03-20 | 0.3 | NA | 20 | 32.55 | NA |
Material: Steel, stainless steel, aluminum, galvanized.
Application: AHU/Cleanroom air filter, High-Pressure Filter-Filter, Air-Compressors Filtration, medical equipment, Product design, high-tech industry..etc.
T (Thickness): Plate Thickness
W (Width): Strand width
SW: Short way dimension of mesh
LW: Long way dimension of mesh
The illustrations show the correct way to designate SW and LW dimensions in relation to the length or width.
| 【Standard】 | 【Flatten】 |
 |
 |
