Architectural Metal Mesh

Junen Architectural Metal Mesh is specially designed to provide applications in architecture and decoration. It is not only beautiful, but also used by architects to create architectural works. It is especially suitable for the sunlight shading and ventilation.

In addition to blocking and protection, the architectural metal mesh produced by JUNEN can also maintain a good view, heat radiation and energy saving, environmentally friendly production ways, light transmission without the pressure of the surrounding wall, and adjustable light transmittance and ventilation.

It is its biggest advantage.

Expanded metal with large holes can be applied to: safety fences and building fences, which can keep privacy, reduce direct sunlight, etc., and can also be combined with vine plants to purify the air and block noise, and become a building appearance material with both design and function. Strong and sturdy and beautiful at the same time, and can use various materials up to the demands.

Mesh Specifications
Name Strand Size (MM) Mesh Size (MM) Open Area
ID No. T W SW LW %
JA-02-09 2 5.5 9 45 22.2
JA-02-25 2 8 25 61 36.0
JA-02-34 2 12 34 76 24.4

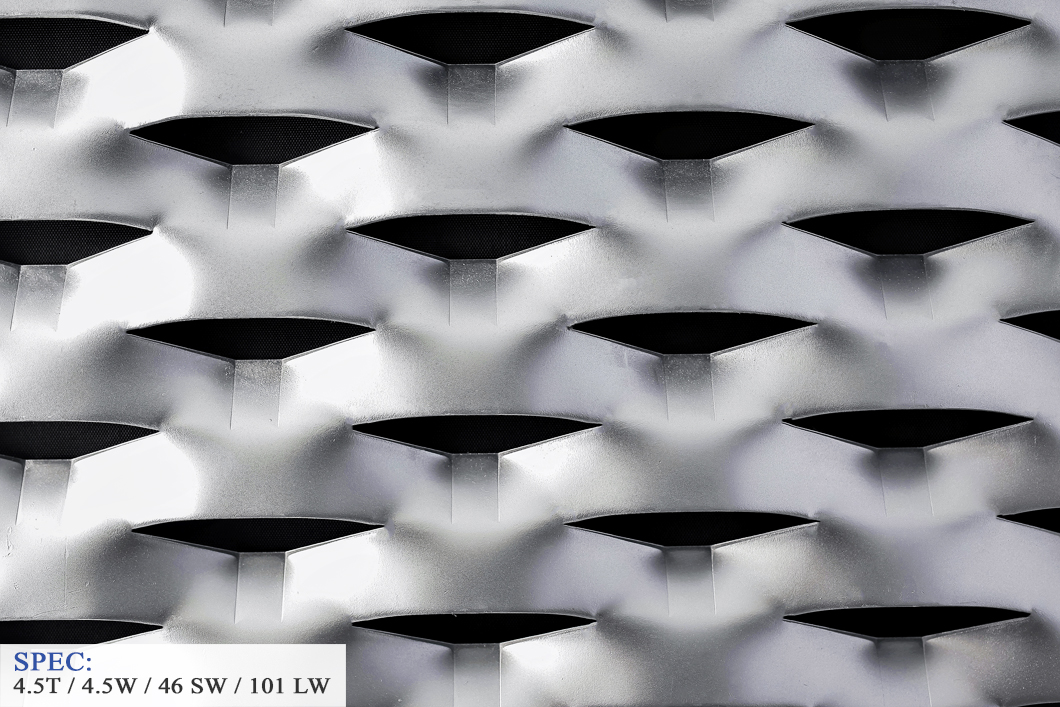

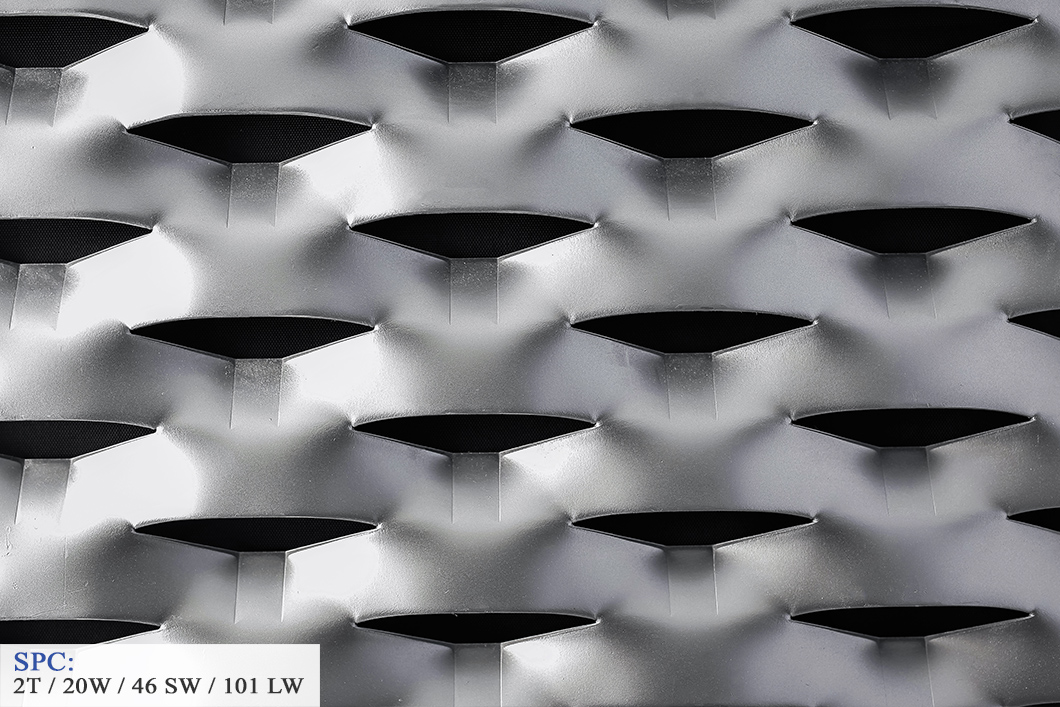

JA-02-46 2 20 46 101 13

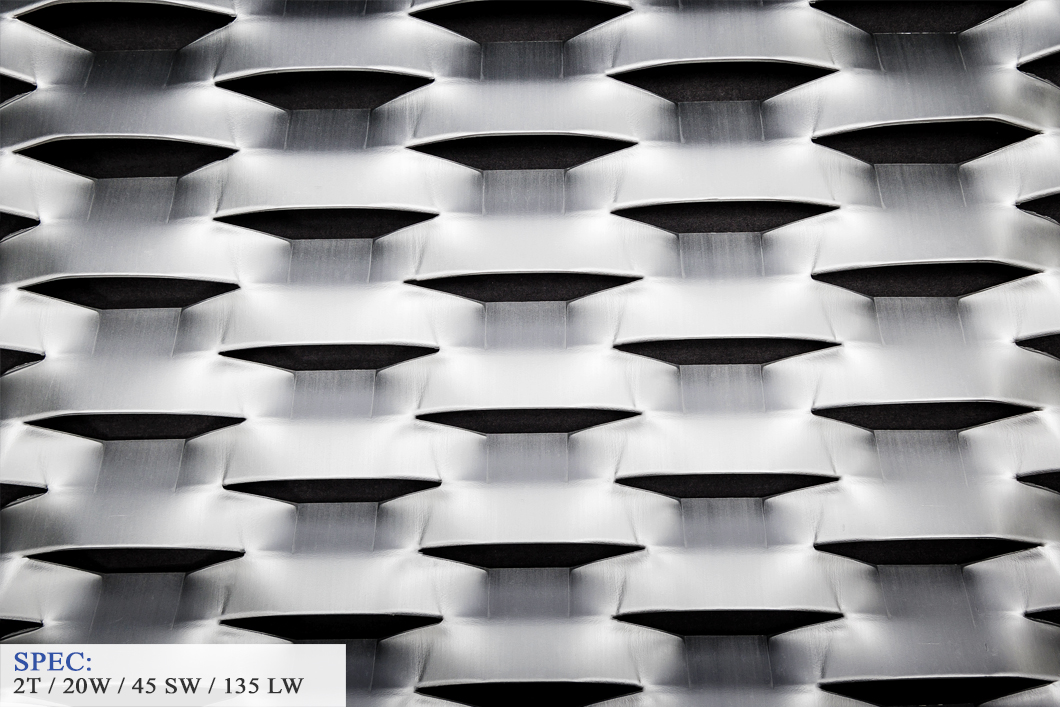

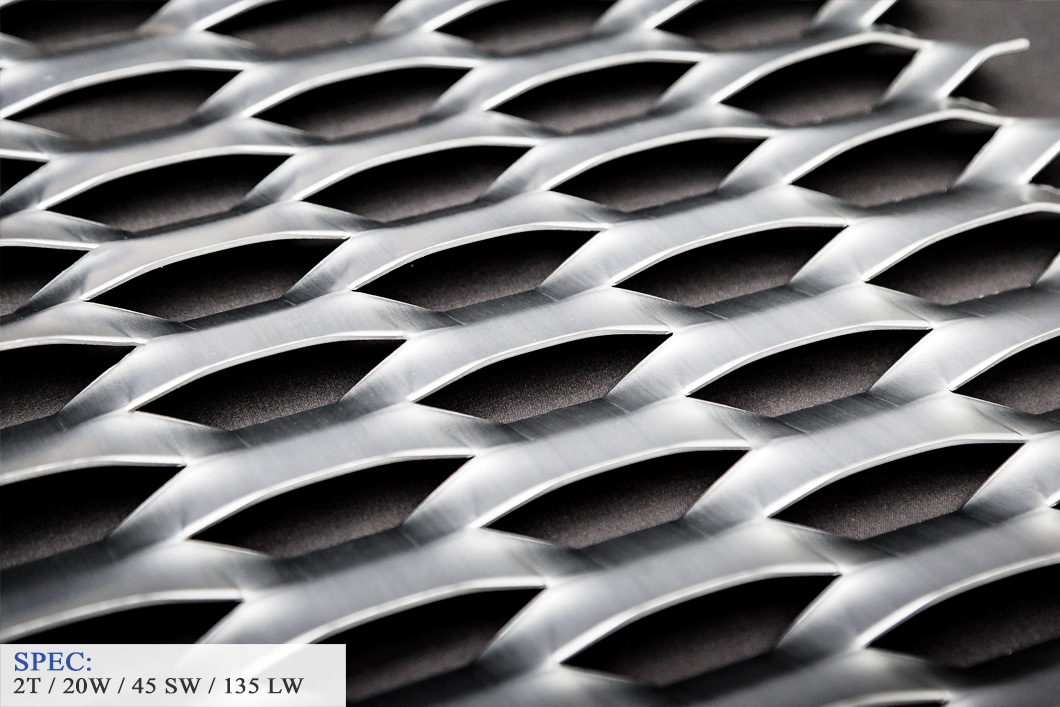

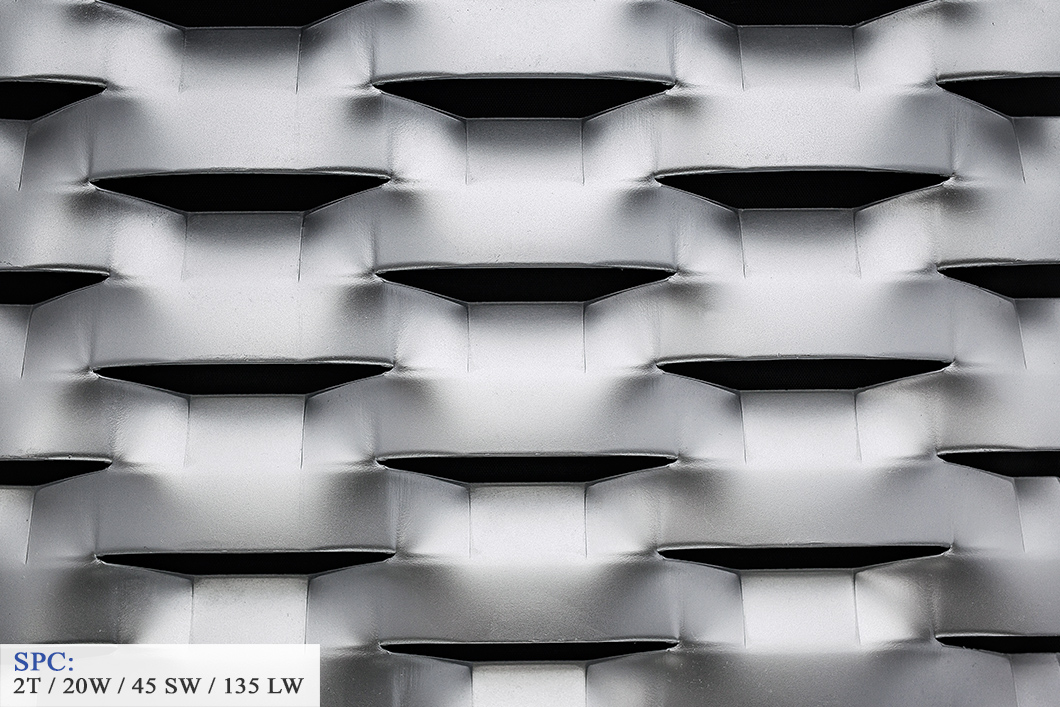

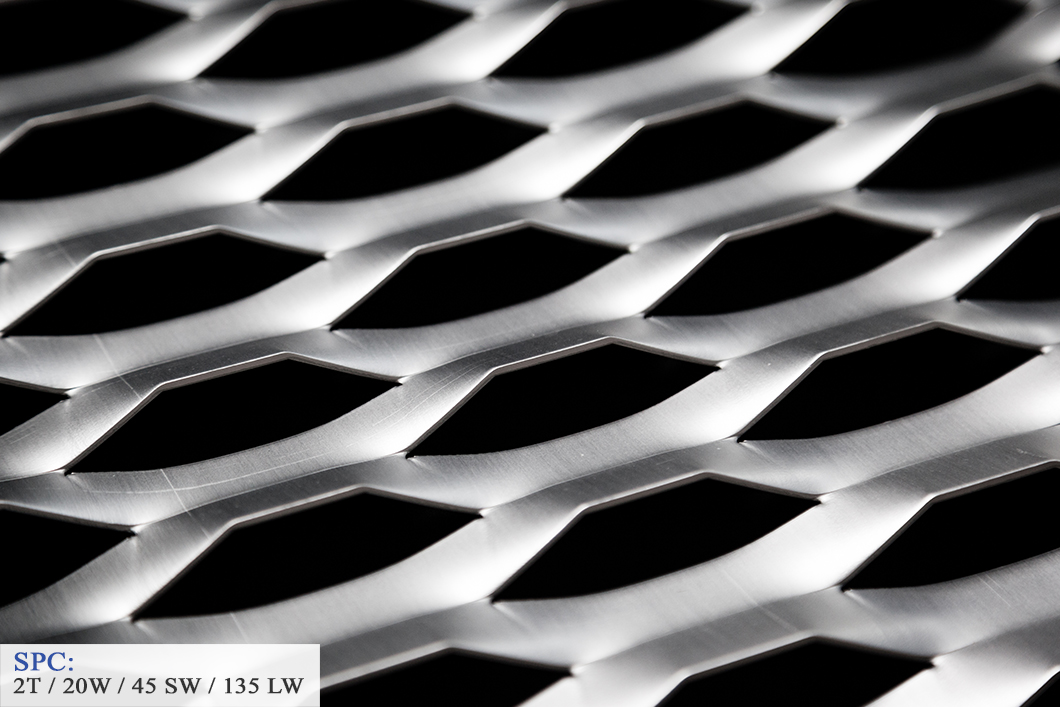

JA-02-45 2 20 45 135 11

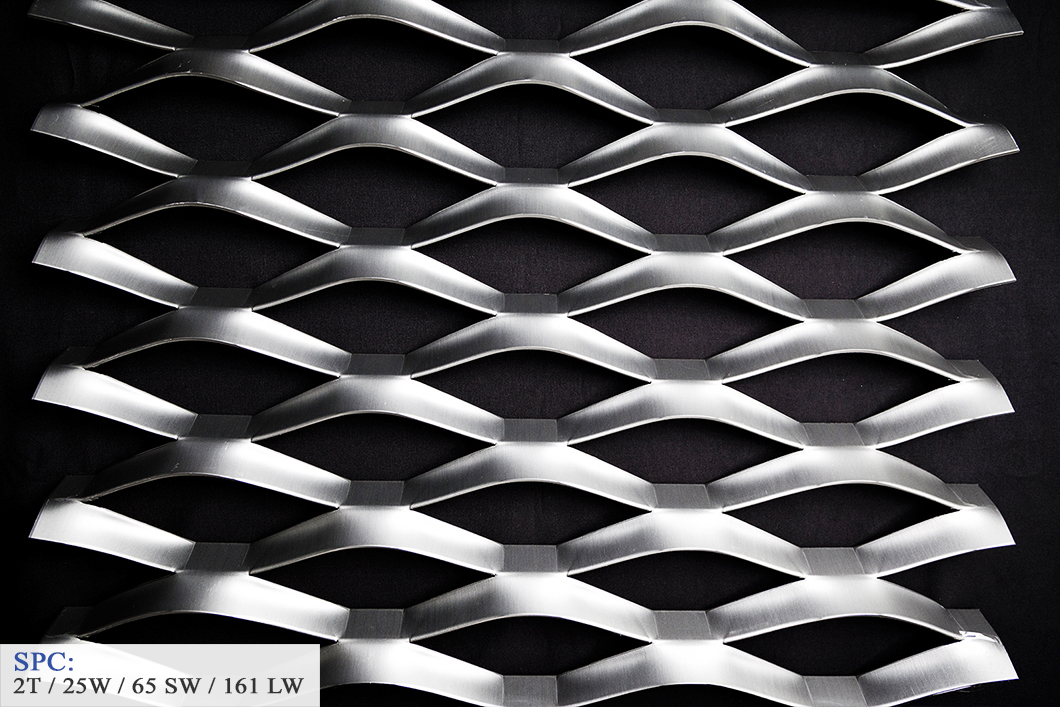

JA-02-65 2 25 65 161 23
JA-02-80 2 25 80 203 37.5

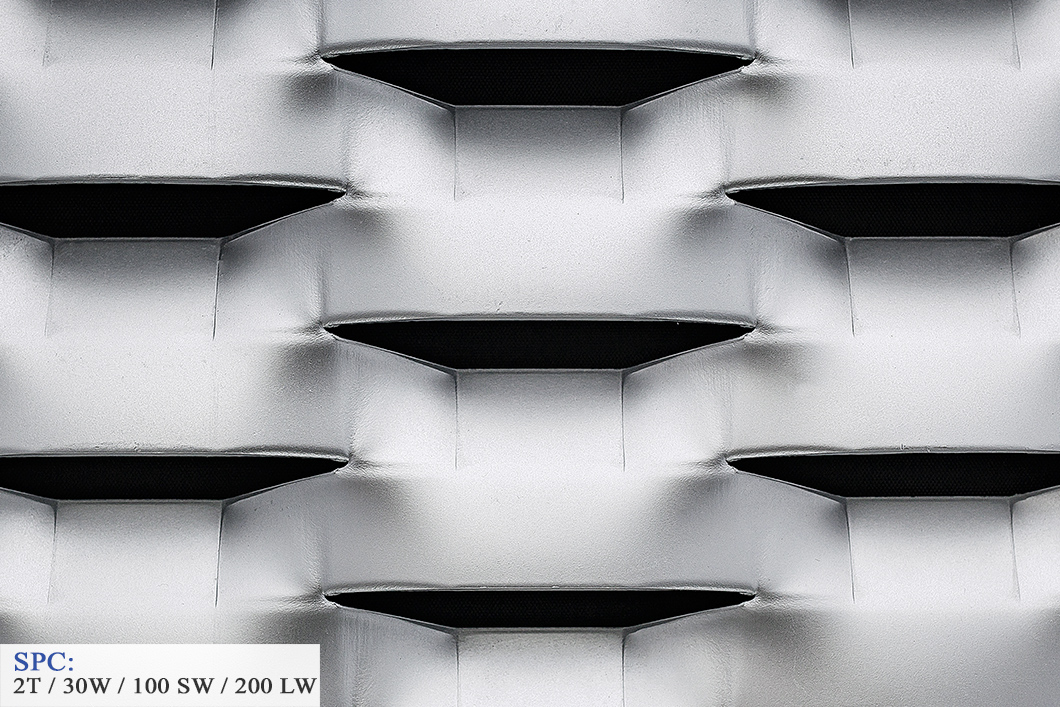

JA-02-100 2 30 100 200 40

Material:
Steel, stainless steel, aluminum, galvanized.
Scope of application: architectural modeling, outdoor shading, interior decoration, railings, fences, green walls, facades...etc

Glossary of Expanded Metal Terms

T (Thickness): Plate Thickness
W (Width): Strand width
SW: Short way dimension of mesh
LW: Long way dimension of mesh
Architectural Metal Wire Mesh
The illustrations show the correct way to designate SW and LW dimensions in relation to the length or width.

【Standard】 【Flatten】

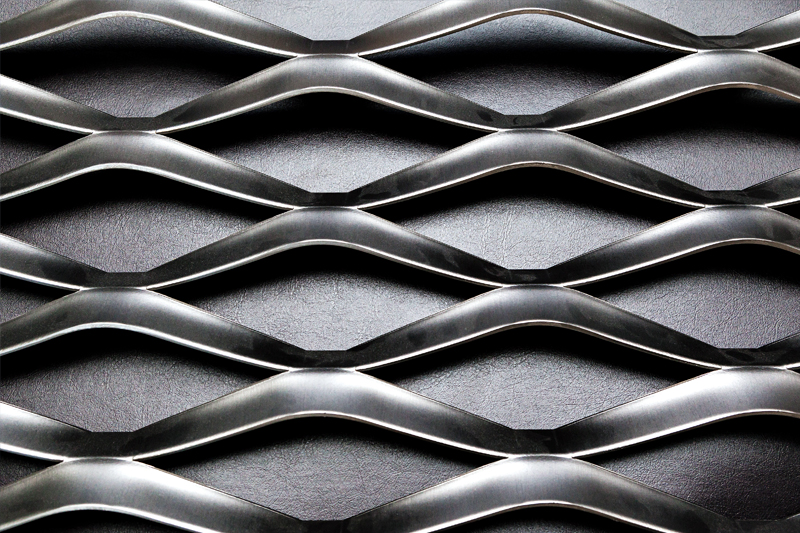

Architectural Metal Wire Mesh (Standard) Architectural Metal Wire Mesh (Flatten)

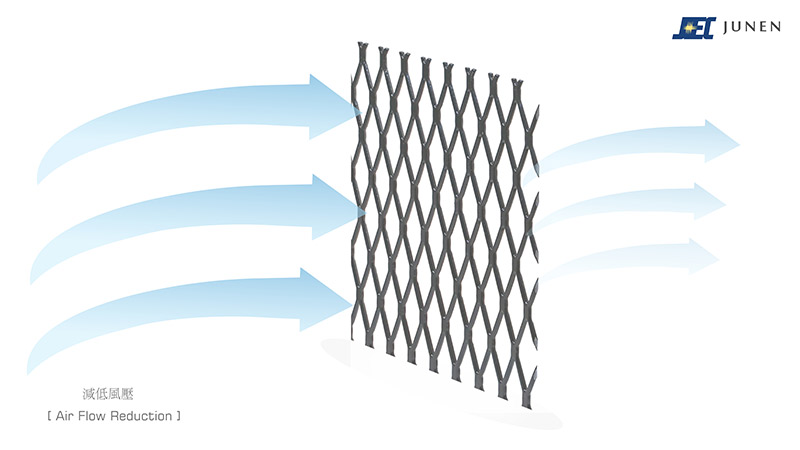

Architectural Metal Wire Mesh - Air Flow Reduction

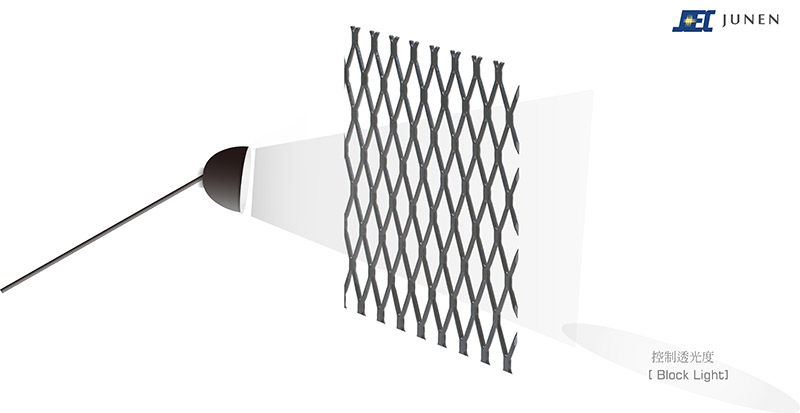

Architectural Metal Wire Mesh - Block Light

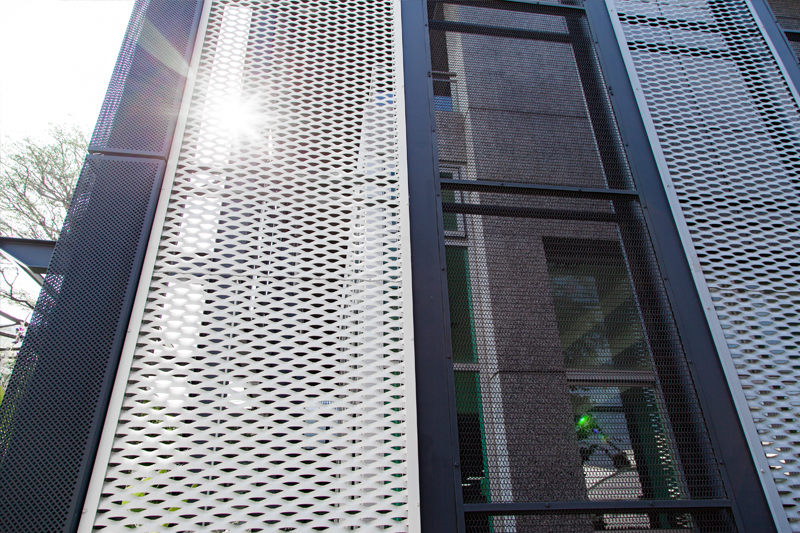

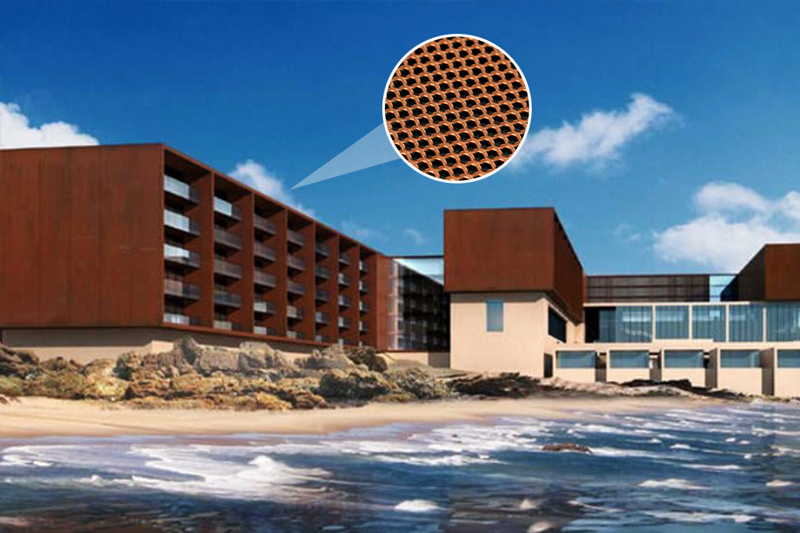

Application
