Stainless Steel Filter Mesh, Filtration Metal Mesh

Filtration Metal Mesh

Junen metal mesh, which is through a fixed opening rate, and cana meet the needs of various types of filtration, and supports the structure of the entire filter unit, especially suitable for filtration applications in different industrial fields, not only can save costs, but also can increase the life of the filter.

For cleanroom applications, we provide every layer from pre-filter to HEPA filter. We also specialize in functional materials like copper, titanium, and nickel for different chemical treatment purposes.

Junen metal mesh, which is through a fixed opening rate, and can meet the needs of various types of filtration, and supports the structure of the entire filter unit, especially suitable for filtration applications in different industrial fields, not only can save costs, but also can increase the life of the filter.

For cleanroom applications, we provide every layer from pre-filter to HEPA filter. We also specialize in functional materials like copper, titanium, and nickel for different chemical treatment purposes.

Inquiry Contact us

Mesh Specifications

Name	Strand Size (MM)		Mesh Size (MM)		Open Area
ID No.	T	W	SW	LW	%
JF-08-04	0.8	0.8	4(5)	8(10)	60
JF-08-06	0.8	0.8	6	12	73.3
JF-01-06	1.0	1.0	6	12	67
JF-08-07	0.8	0.8	7	14	77.1
JF-01-07	1.0	1.0	7(8)	14(13)	86
JF-03-18	0.3(0.4)	NA	18	31.75	NA
JF-03-20	0.3	NA	20	32.55	NA

Material: Steel, stainless steel, aluminum, galvanized.
Application: AHU/Cleanroom air filter, High-Pressure Filter-Filter, Air-Compressors Filtration, medical equipment, Product design, high-tech industry..etc.

Glossary of Expanded Metal Terms

T (Thickness): Plate Thickness
W (Width): Strand width
SW: Short way dimension of mesh
LW: Long way dimension of mesh
Filtration Metal Mesh
The illustrations show the correct way to designate SW and LW dimensions in relation to the length or width.

【Standard】	【Flatten】

Application

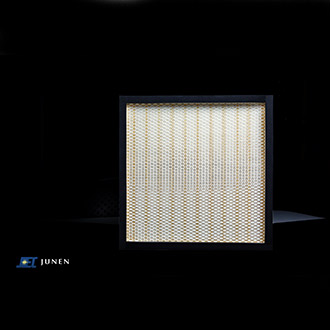

Expanded Metal Filtration
