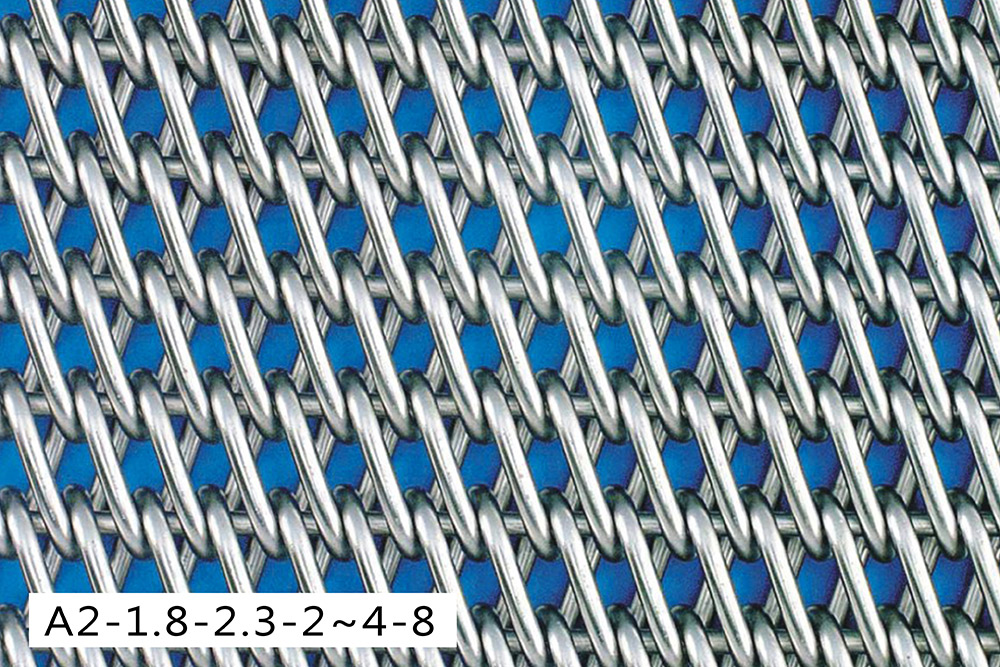

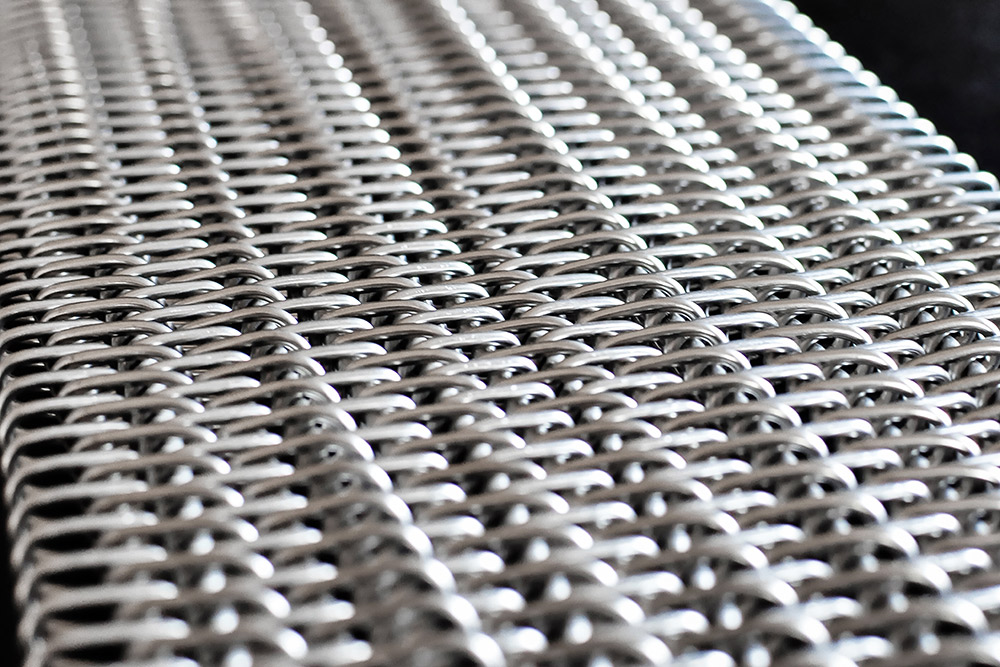

Gratex Belt

Gratex Belts are the most widely used metal conveyor belts constructed with alternating left and right hand spirals joined by the straight rods.
If the rod pitch is less than two-fold spiral pitch, the belt is called A2.
If the rod pitch is more than two-fold spiral pitch, the belt is called F2.

For Heat Treatment Machinery, Chemical Machinery, Continuous Baking Machinery, Glass Machinery, Freezing Food Machinery, and other conveyors.

Mesh Specifications
A2/F2 Gratex Conveyor Belt Specification

Material: SUS 304, SUS 316, SUS 310S, SUS 314
Glossary of Expanded Metal Terms

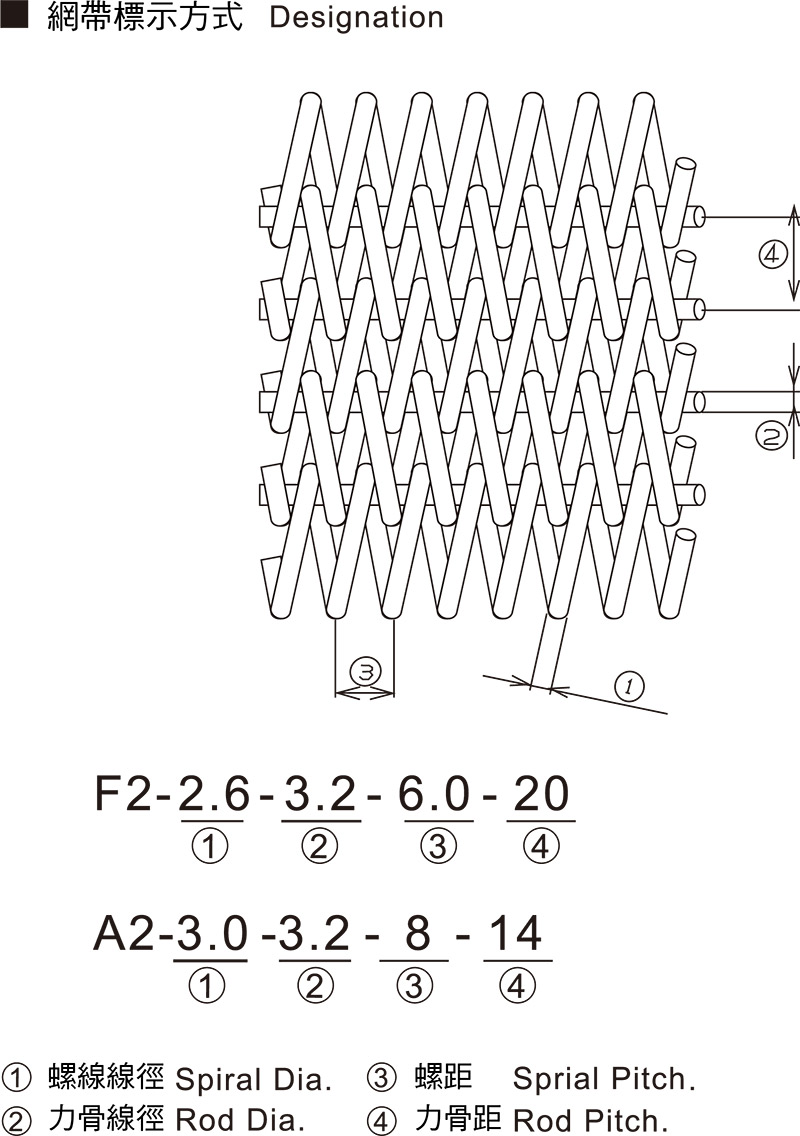

A2/F2 Gratex Conveyor Belt Designation
Features
  1. Surface us flat and unstable items can be carried.
  2. Excellent strength-to-weight ratio. The allowable belt tension is capable for heavy load.
  3. Belt can be used at high temperature.
  4. Having fine mesh, the belt can be used for transportation of small items.
