General Type

JUNEN expanded metal machine is our pride of the ambitious endeavor of the company to have competitive advantage in the world. Since JEC is the machine supplier as well as expanded metal product manufacturer, we are happy to share our experiences and provide technical consultation regarding new construction and expansion of expanded metal production.

JEC Expanded Metal Machine satisfies different production requirements by supplying high quality customized machines according to your needs. It can be categorized by working width as 35 series, 61 series, 75 series, 130 series, 160 series, 260 series and 310 series. The General Type includes 61 series, 75 series, 130 series, 160 series and 260 series. According to material thickness requirement, there are L, H, HB, and HH type for your choice. Please contact us for more details and advices.

JEC machine is equipped with servo drives, PLC and HMI control, to assure the capabilities of producing a wild range of expanded metal products in high speed as well as delivering the high quality of outputs. You can produce either with coil or with single sheet of steel on the same machine.

Mesh Specifications
Series Spec Model
L H HB HH
35 SWD (mm) 0.5 – 2 - - -
LWD (mm) 1 – 4 - - -
Thickness(mm) MILD STEEL 0.1 – 0.8 - - -
STAINLESS STEEL 0.1 – 0.5 - - -
Speed 1500   - -

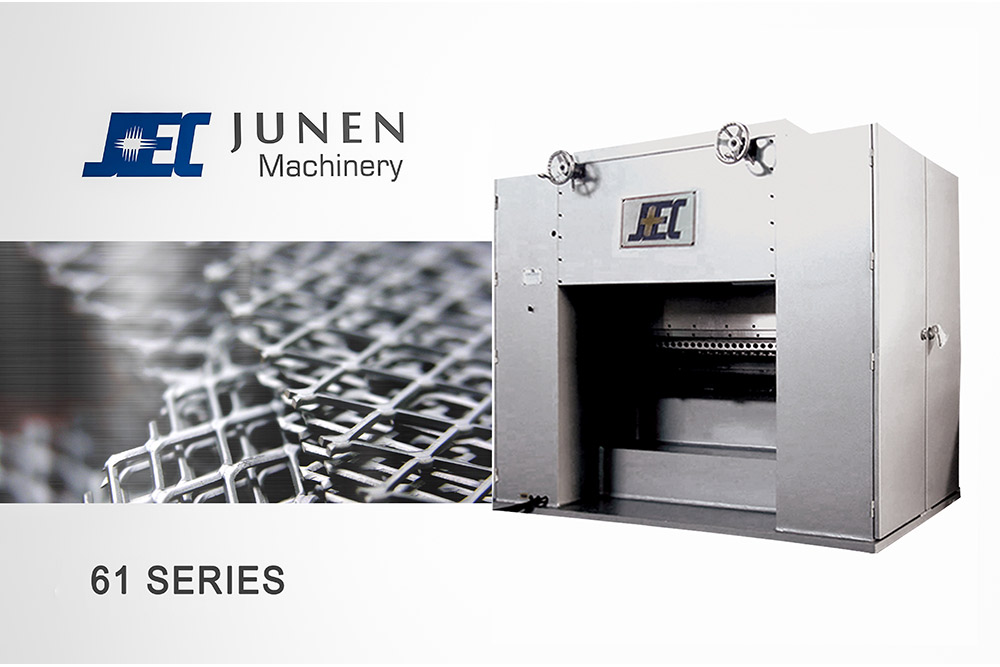

61 SWD (mm) 1 – 6 2 – 15 - -
LWD (mm) 2 – 12 4 – 30 - -
Thickness(mm) MILD STEEL 0.3 – 0.8 0.3 – 1.0 - -
  STAINLESS STEEL 0.3 – 0.6 0.3 – 0.8 - -
Speed 1200 1000 - -
75 SWD (mm) 1 – 12 4 – 34 - -
LWD (mm) 2 – 24 8 – 80 - -
Thickness (mm) MILD STEEL 0.3 – 1.2 1.4 – 2.6 - -
STAINLESS STEEL 0.1 – 0.8   - -
Strand (mm) 0.3 – 3.0 1.4 – 5.0 - -
Speed 1200 600 - -
130 SWD (mm) 1 – 12 2 – 38 12 - 40 -
LWD (mm) 2 – 24 4 – 76 30 - 140 -
T Thickness (mm) MILD STEEL 0.3 – 1.2 0.5 – 3.0 0.5 – 3.5
STAINLESS STEEL 0.3 – 1.0 0.5 – 2.0 0.5 – 2.0
Speed 900 450 350 -
160 SWD (mm) 6 – 15 12 – 40 12 – 50 12 – 70
LWD (mm) 10 – 32 30 – 140 30 – 140 30 – 160
Thickness (mm) MILD STEEL 0.5 – 2.0 0.5 – 3.2 1.5 – 6.0 1.6 – 9.5
STAINLESS STEEL 0.5 – 1.5 0.5 – 2.0 1.5 – 4.5 1.6 – 7.5
Speed 450 260 250 230
260 SWD (mm) 10 – 35 12 – 50 12 – 70 12 – 101
LWD (mm) 25 – 76 25 – 140 30 – 200 30 – 203
Thickness (mm) MILD STEEL 0.5 – 3.0 1.0 – 5.0 1.0 – 6.0 1.0 – 8.0
STAINLESS STEEL 0.5 – 2.0 1.0 – 4.0 1.0 – 5.0 1.0 – 5.0
Speed   250 230 200
310 SWD (mm) - - 10 – 70 12 – 101
LWD (mm) - - 20 – 160 30 – 203
Thickness (mm) MILD STEEL - - 1.5 – 6.0 3.0 – 8.0
STAINLESS STEEL - - 1.5 – 4.0 3.0 – 6.0
Speed   - 230 200
Optional Equipment
  • Decoiler
  • Flattener
  • Multi-roller leveler
  • Recoiler
  • SWD servo motor auto adjustment
  • Servo-motor roller feeding system
  • Clamping feeder & sheet loader (for 250, 310 series only)
  • Robotic of Production line.
Features
  • Accurate, no-waste and high speed production.

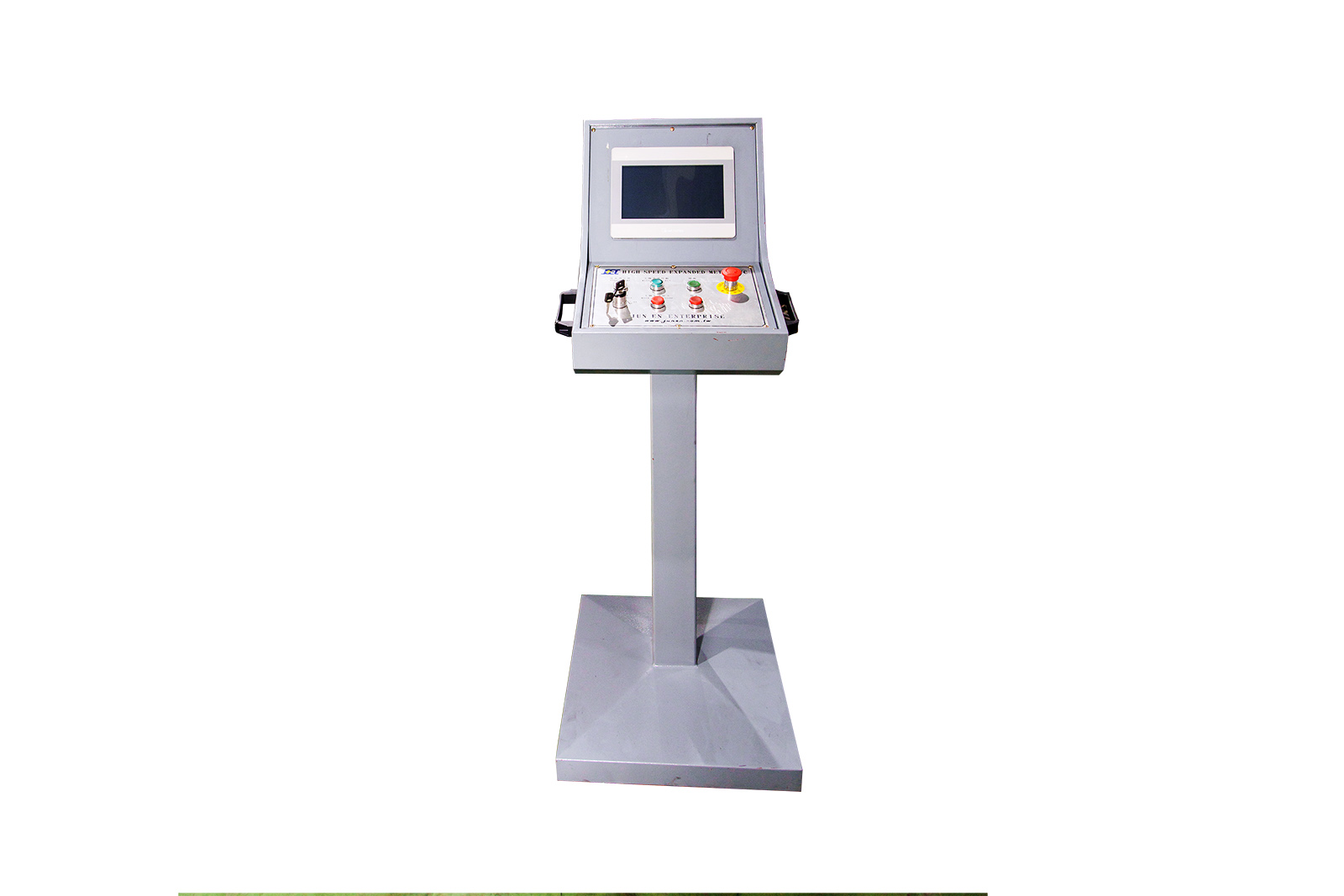

  • Easy maintenance and user-friendly control panel.
  • Suitable for both single metal sheet and coil production.
Machine Video

4ft Expanded Metal Machine

8ft Heavy-Duty Clamping Type Expanded Metal Machine

1ft High-precision Expanded Metal Machine
