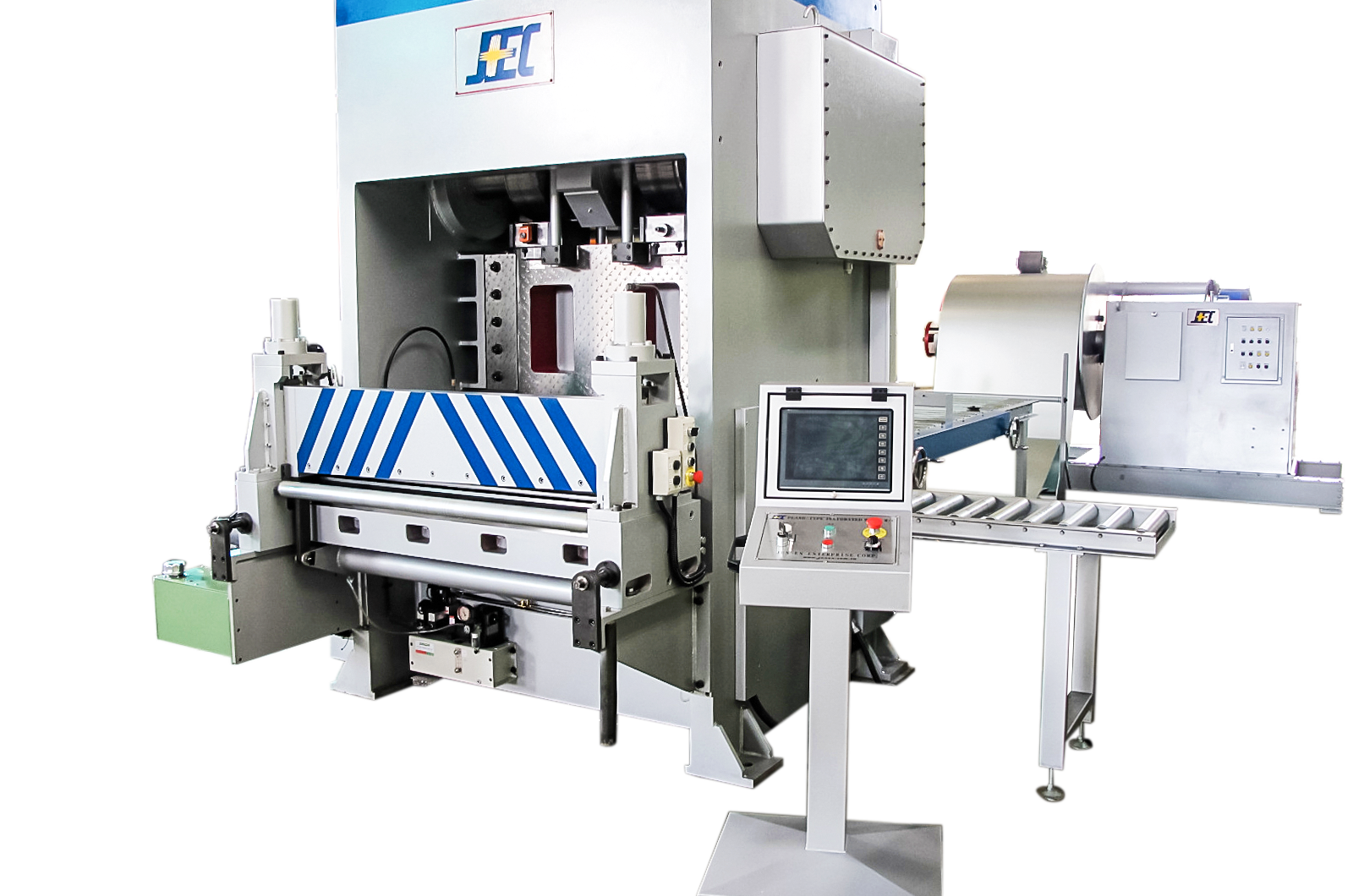

High Speed Plano-Type Perforated Metal Machine

JUNEN manufactures different types of perforated metal machines. Through continuous improvements to the feeding mechanism and punching moulds, will our machines be able to meet your needs for different perforation patterns and perforated metal applications. We are always happy to provide technical advices to you.

JUNEN perforated metal machine has two choices for you: Plano type and C type. Plano type perforated metal machine is best for mass production focusing on high speed, larger capacity with similar mesh pattern requirements. The optional Quick-Die-Change-System enables better performance with lower production costs. C type perforated metal machine is best for various mesh pattern and wild range of thickness requirements. The machine is also equipped with easy-changing punch dies which saves a lot of time on changing the moulds and lots of costs on the moulds.

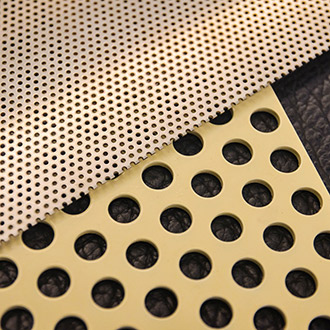

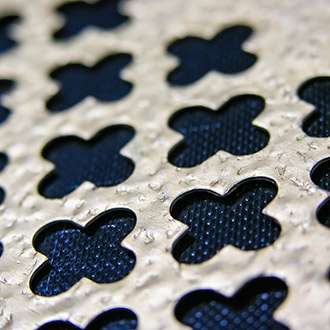

Perforated metal is a metal sheet/coil that is punched with holes. We produce our perforated metal by JUNEN perforated metal machine. With long year experience, we are able to satisfy our customers by providing perforated metals with holes made in round, square, slotted or customized shapes on special request. JUNEN perforated metal mesh products have been widely used in filtering, mechanical protecting, noise insulation, architectural applications.

  • Working Width: 610mm ,750mm, 1250mm,1500mm
  • Thickness: Mild Steel 0.5mm - 3.0 mm
                    Stainless Steel 0.5mm - 1.5mm
  • Speed: Max. 400 s.p.m (strokes per minute)
Optional Equipment
  • Auto hydraulic shearing unit
  • Hydraulic decoiler* Recommended
    Hydraulic recoiler
  • Multi-roller leveller

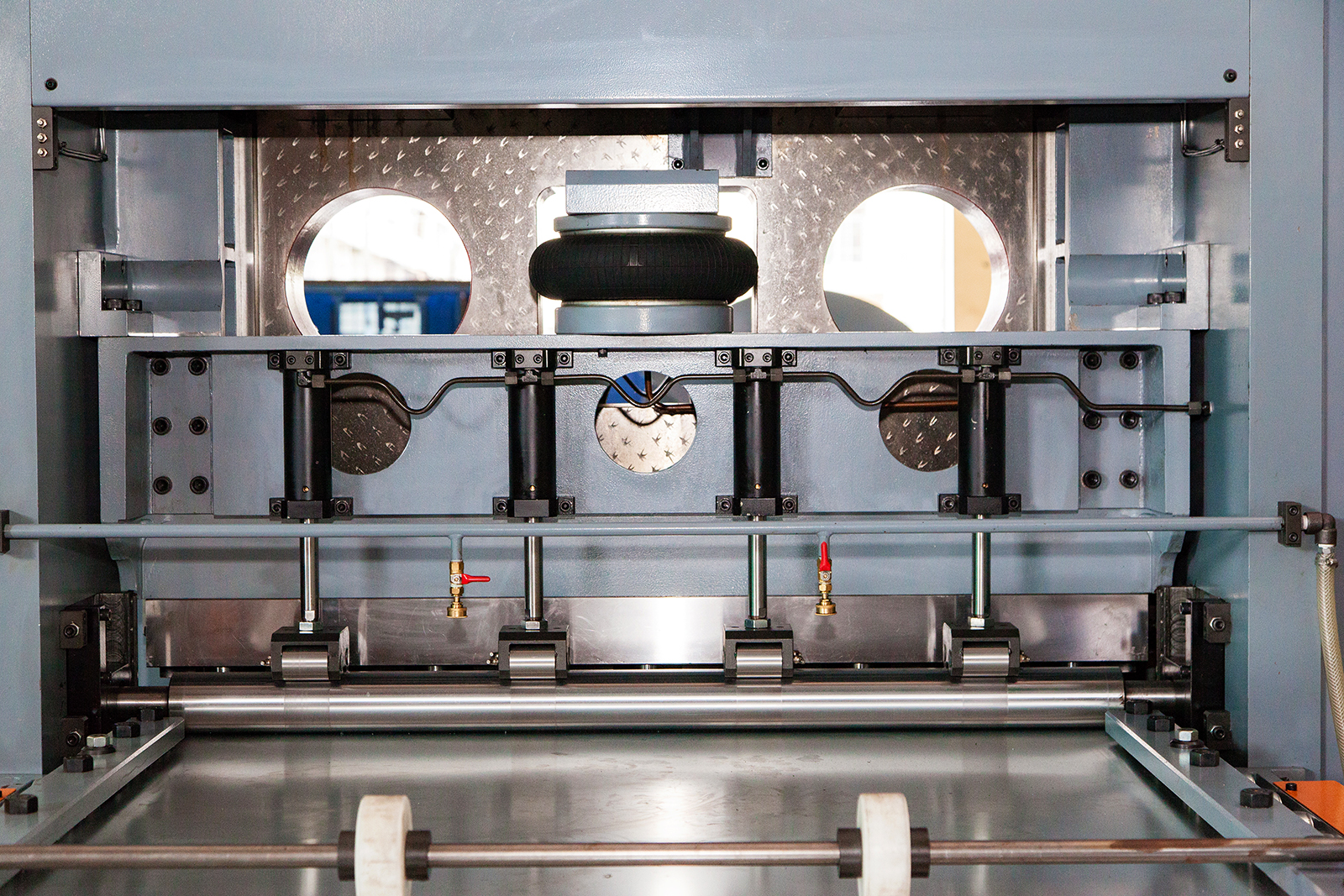

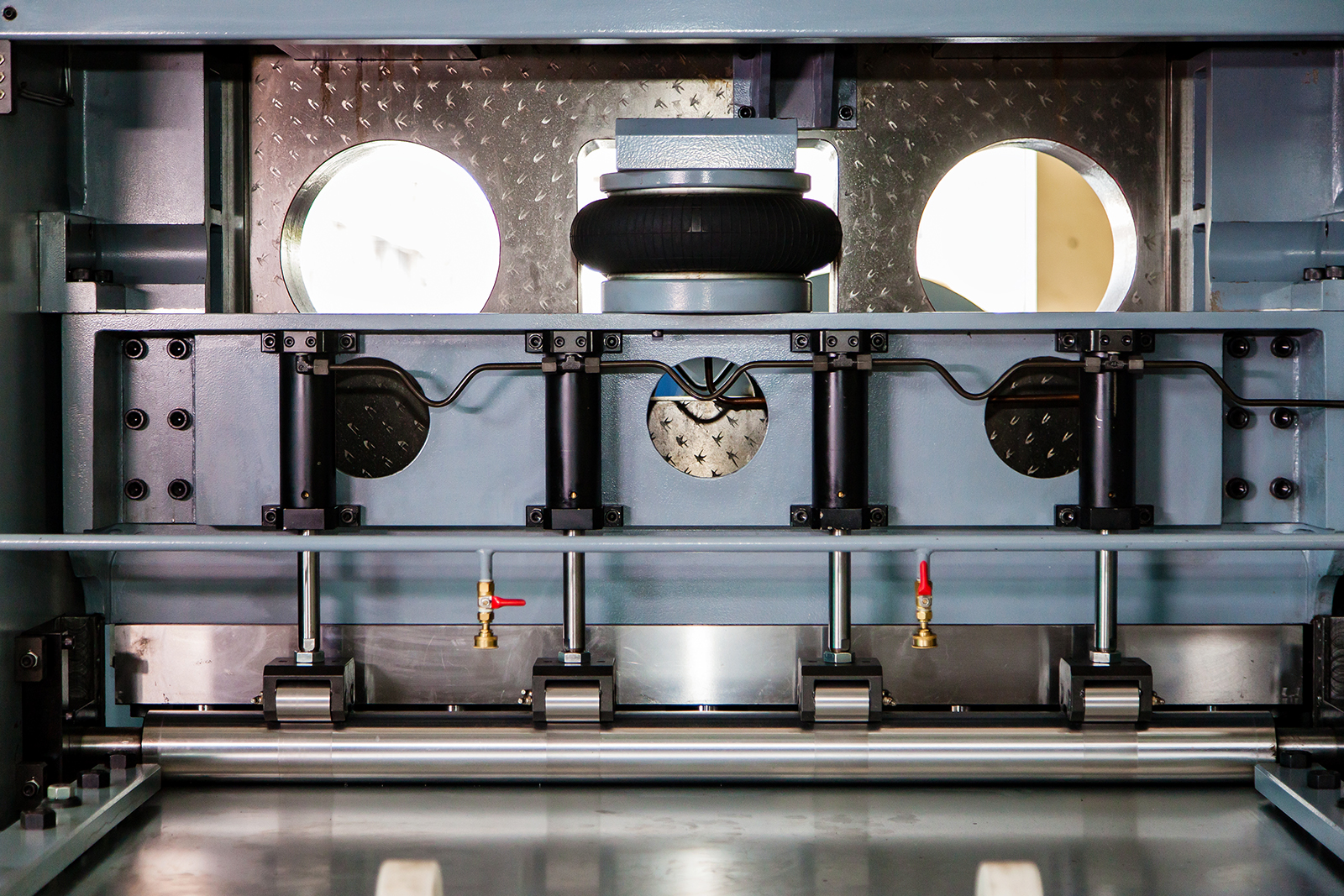

High speed operation with multi-row punching mould (up to 8 rows)
Ideal for mass production with similar mesh pattern
QDCS—Quick Die Change System

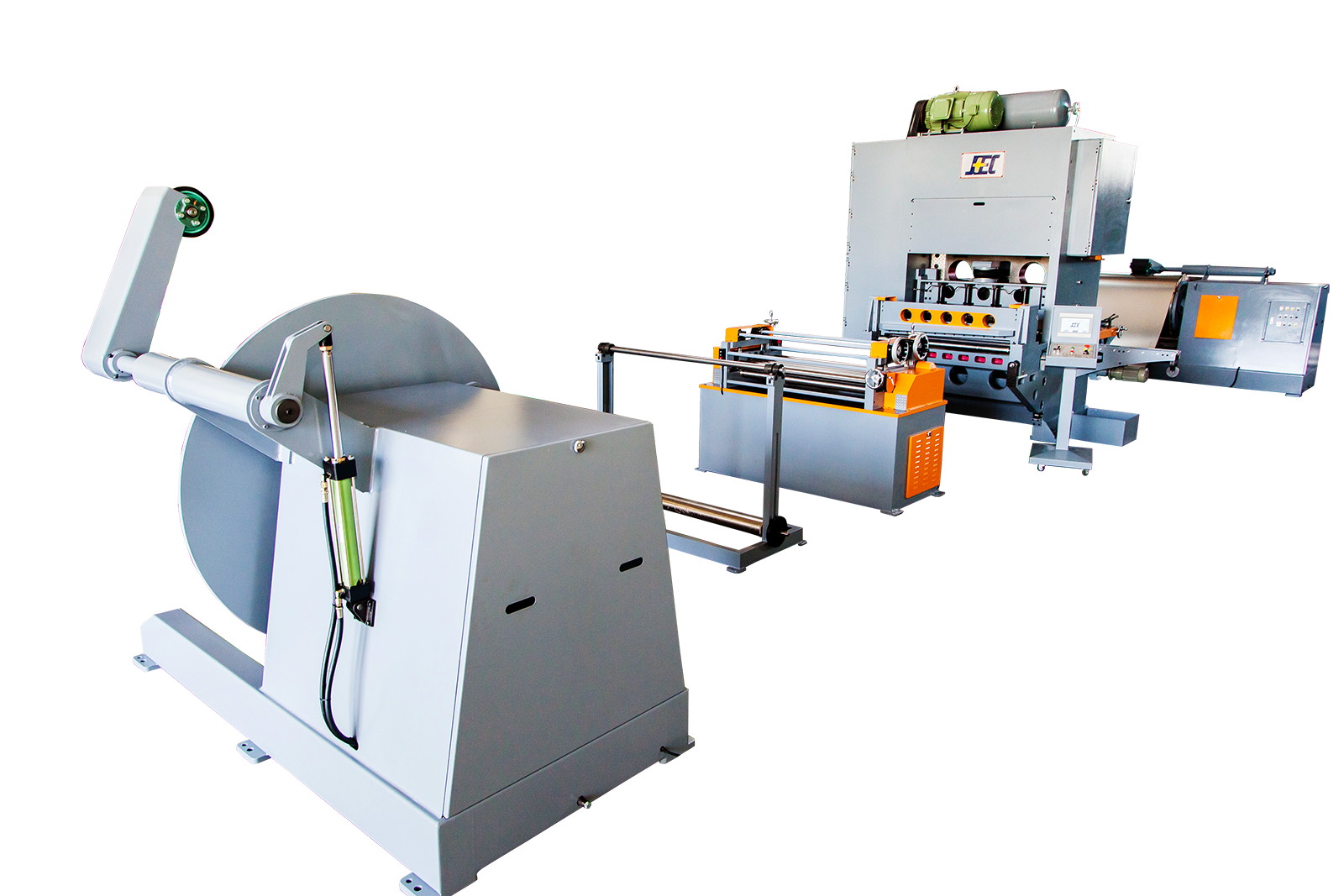

Available for coil to coil, coil to sheet, sheet to sheet production

Applications of Perforated Metal
Audio, Architectural Decoration, Heating, Ventilation, and Air conditioning, Filtration, Noise control, merchandise displays, walkway/grating.

A perforated metal grille is usually mounted in front of the speaker driver to protect the driver element, speaker internals, and other audio components without affecting the sound quality.

Architectural Decoration
Perforated mesh is used in a wide range of architectural applications including interior decoration, building sunscreens, ceiling panels and stair treads/risers. Perforated mesh gives modern design more energy and flexibility.

Perforated metal can be used in filters to support the filter media. It can be processed into many kinds of forms, such as tube, cylinder and sheet.

Noise Control
Perforated mesh is an excellent choice for noise control. They can be located anywhere on walls and ceilings to instantly reduce noise levels and control reverberation to solve the problems that make communication and concentration difficult in many environments.

Machine Video

Plano-Type Perforated Metal Machine (PLP-1250H)

Plano-Type Perforated Metal Machine(DPP-1250)

Plano-Type Perforated Metal Machine(DPP-1250 MH)
